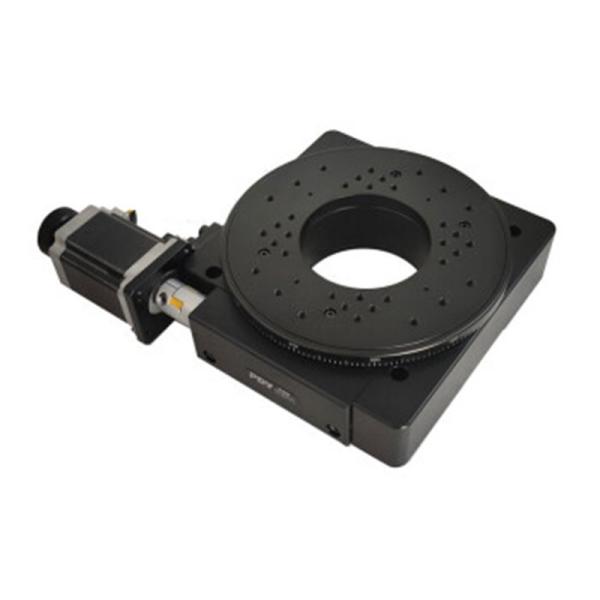

Motorized Rotation Strage Precision Rotary Desk Dia 200mm Balls Crew Rotating Stage
Product description
The main body of the product is made of hard aluminum alloy with black anodized surface and beautiful appearance. The guide mechanism adopts precision cross roller bearing, which has high strength, strong load capacity and good durability, and can be used horizontally and vertically. Internal precision shafting structure, so that the product has a high precision of movement.
The product is very suitable for use in equipment or automatic production line with complex working conditions and high durability requirements.
Product features
Stepper motor drive to realize automatic Angle adjustment.
The worm wheel and worm are made of wear-resistant material and treated by special technology, so it has high wear resistance and high precision and reliability of rotating table.
Imported high precision high rigidity shafting makes the rotation precision is high, the bearing capacity is large, the operation is smooth.
The outer ring of the rotating table is graduated, intuitive and convenient, with a physical zero.
Standard interface, convenient signal transmission.
Product specification
| Model Number | PX110-200S | |
| Structure | Angle Range | 360° |
| Platform(mm) | φ200 | |
| Transmission Ratio | 180:1 or 90:1 or 45:1 (Choose one of the three) | |
| Drive Mechanism | Worm Gear and Worm | |
| Travel Guide | Bearing | |
| Stepper Motor (1.8°) | 57BYG | |
| Material | Aluminum Alloy | |
| Surface Preparation | Black-Anodized | |
| Load Capacity(Kg) | 55 | |
| Weight( Kg) | 9 | |
| Accuracy | Resolution | 0.01°=36”(Non MS) 0.0005°=1.8”(20 MS) |
| Velocity | 25°/sec | |
| Repeatability | 0.005°=18” | |
| Absolute Accuracy | 0.01°=36” | |
| End Jump | 15μ | |
| Backlash | 0.005°=18” | |
| Eccentric | 20μ | |
| Lost Motion | 0.005°=18” | |
| Parallelism | 100μ | |
Product diagram
Product application field
Optical fiber coupling, optical waveguide alignment, core adjustment, packaging system, capacitive touch screen production equipment, optical instrumentation, printing equipment, machining and other images.
|
|
