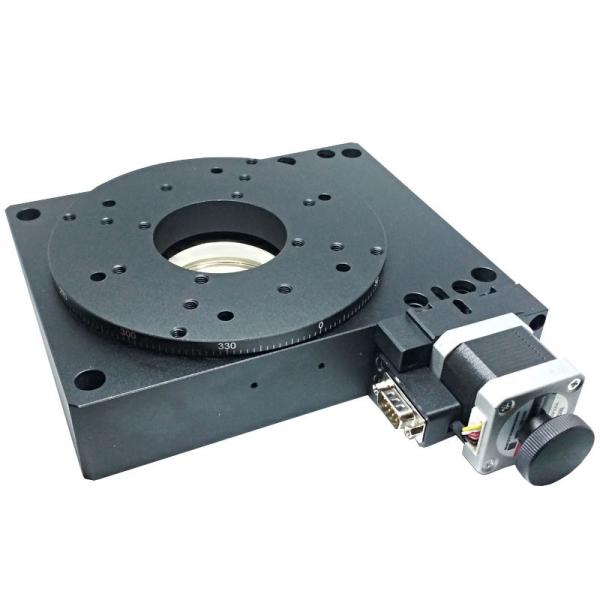

Worm Gear Worm Indexer Rotary Table , Motorized Rotation Stage PX110 - 150

Product features

Adopt precision shafting, worm gear and worm transmission mode.

The base of the rotary table is made of wear-resistant material and processed with precision, which has strong wear resistance and high precision and reliability.

The integrated design ensures the static flatness of the table and the bottom plate after fine grinding.

The high precision and high rigidity shaft system ensures the coaxiality between the central through hole of the rotary table and the rotation center, with high rotation precision, large bearing capacity and stable movement.

The electric control rotary table can be used horizontally and vertically.

Limit function and zero function can be added.

Replaceable servo motor, circular grating and encoder, and accept product transformation and customization.

The controller independently developed by the company can be selected to realize automatic control.

Product specification

Product diagram

The core technology of electric rotary table is shafting design. Reasonable structure, excellent material and precise processing ensure no shaking, deflection, empty return and noise during rotation; High positioning accuracy; Large bearing capacity; Fast speed; The key factor of long service life, and can ensure the flexible overall structure, such as overall dimension, shape, central hole, etc.

Another key component of the electric control rotary table is the worm gear structure which plays the role of transmission. Most rotary tables at home and abroad adopt worm gear transmission, but its quality directly affects the positioning accuracy, air return, speed, resolution and service life.
