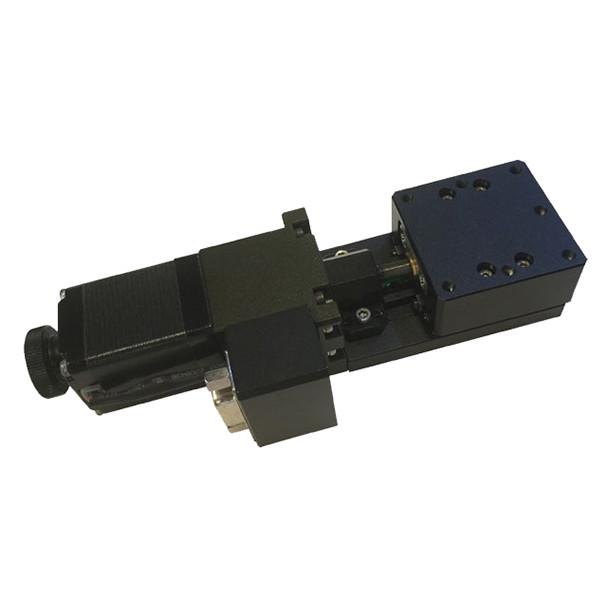

Platform 40*40 / 60*60mm , High Precision Motorized Linear Stage , Electric Translating Platform PP110-10

Product features

The main material is hard aluminum alloy, with black anodizing treatment on the surface, good wear resistance and beautiful appearance.

Imported cross roller guide rail is adopted, which has high strength, strong load capacity and good durability.

The guide rail mounting surface adopts precision machining technology, so that the product has high motion accuracy.

Cross roller guide rail is adopted and 28 stepping motor is equipped as standard, which can provide high resolution and positioning accuracy.

Product specification

Product diagram

Motorized linear stage is widely used in scientific research, laser application, automatic measurement and detection instruments and equipment, industrial automation and other fields because of its high precision, high speed, large load-bearing, large stroke and automation; And realize automatic displacement control in vacuum, pollution, sterility, radiation and other environments.

Motorized linear stage system basically consists of three parts: displacement table; Drive motor; controller. The driving motor and controller mainly determine the driving torque, resolution, acceleration, signal processing, use functions (such as scanning, arc interpolation) and other performance parameters. The electric translation table is the heart of the system. The main technical indexes such as displacement accuracy, stroke, load, stability, applicable environment and shape length are determined by it.

Motorized linear stage is divided into various series according to the shape, length, stroke, rotation angle, guide rail form and driving mode, and can be combined arbitrarily to meet the requirements of space length, bearing size, adjustable number of degrees of freedom, manual and automatic.

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
