Dovetail Slot Direct Drive Manual Slide Stage Travel 100mm Load 25kg

The main material of this manual translation platform is aluminum alloy, its surface is blackened by oxidation, and it is guided by dovetail auxiliary guide rail, which has strong bearing capacity. Grinding screw drive, small pitch, high sensitivity, scale on the side, locking function, complete functions, easy to use.

PT-SD102P(100mm) Travel:100mm, No locking.

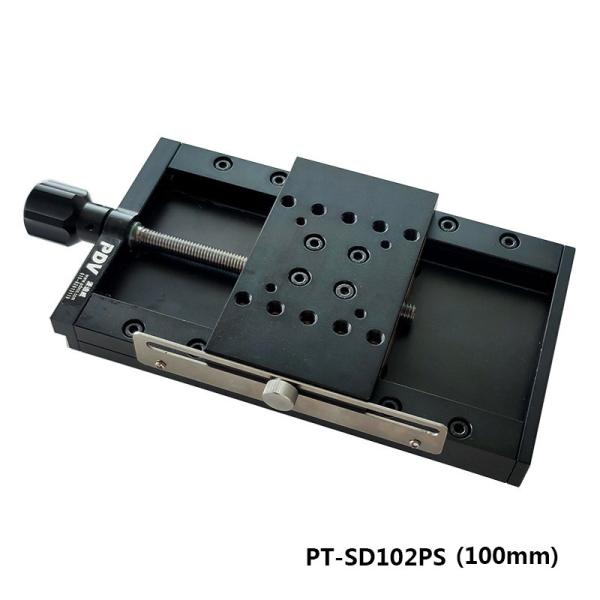

PT-SD102PS(100mm) Travel:100mm, With locking function.

Product characteristics of manual slide stage:

Dovetail auxiliary guide rail, large bearing capacity. Fine rod drive, driving force is large.

A laser scale is marked on the side for easy reading.

Bottom surface, surface processing standard hole, easy to install and combination use.

Can be composed with other series of displacement table multidimensional adjustment frame.

Manual linear platform product specification:

Factors affecting the life of precision displacement platform

The normal service life of precision displacement platform can be permanent, but the accuracy will be worn and degraded with the workload, but it can be repaired and maintained! Is not directly discarded, what is the life of the precision displacement platform related to.

1. Whether it is professional operation and use, it is necessary to understand the use precautions and maintenance of precision displacement platform.

2. Does the workload exceed its scope (overweight, not applicable).

Application field of manual slide stage:

Because of its high precision, strong controllability, high practicability, simple maintenance, translation platform is widely used in scientific research, laser application, automatic measuring and testing equipment, industrial automation and other fields.

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
