High precision electric multi-dimensional combined platform PT150 - 100H

High precision electric translation table: PT-GD150-100H

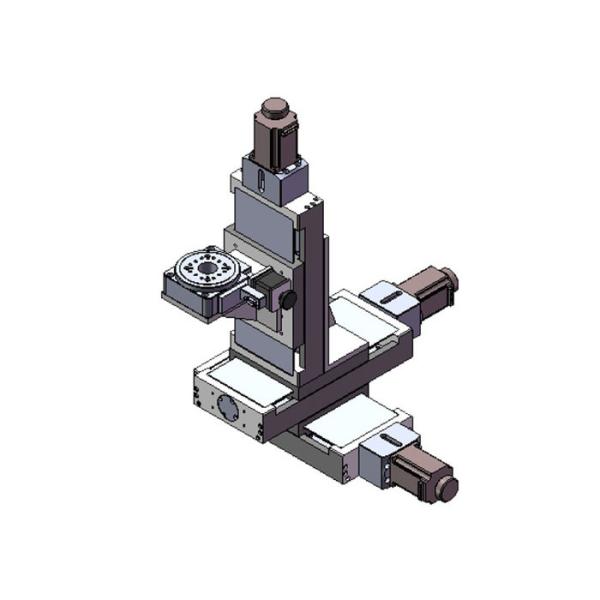

It is composed of three translation tables and one rotary table. The X, Y and Z strokes are 100mm, the diameter of R rotary table is 100mm, and the overall load is 10kg. The length of stroke can be selected arbitrarily.

Product features:

※ it adopts ball screw drive and linear slide guide rail, with high bearing and good rigidity. It is suitable for industrial processing, laboratories or places requiring high load and long-term continuous operation.

※ high precision ball screw drive, good repeated positioning accuracy and team positioning accuracy, small axial clearance and long service life. The translation table itself has a dust cover.

※ the travel of the translation table can be customized according to customer requirements.

※ the servo motor can be replaced, and the grating ruler is added for closed-loop control.

Product parameters
