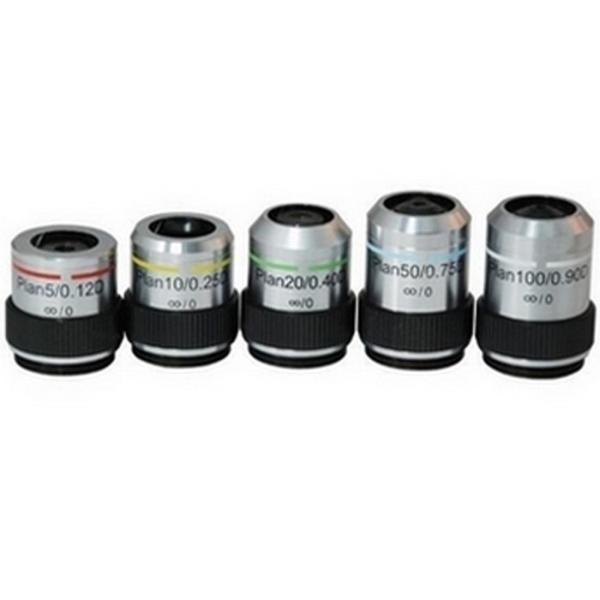

Infinity Long Working Distance Dark Field Plan Achromatic Objective Lens WD - 4005
This plan achromatic objective with M30.32X0.706 mm external thread is designed with infinitely corrected flat field achromatic for the MT0407 series of microscopes. Flat field achromatic objective corrects the axial chromatic aberration, astigmatism and field curvature of the red, yellow and blue spectral lines. It is the best form of microscope objective lens, and the whole field of view is flat and clear. This series objective lens is flat field achromatic dry objective lens with magnification of 5X, 10X, 20X, 50X, 100X, suitable for dark field.
Product specification:
Metallurgical Objective | Notes | 5x 10x 20x 50x 100x Infinity Long Working Distance Plan apochromatic Metallurgical Objective |
5X Infinity Long Working Distance Plan Achromatic Dark Field Metallurgical Objective | Objective Optical System | Infinite |
Objective Optical Magnification | 5X | |
Objective Type | Plan Achromatic Objective | |
Objective Parfocal Distance | 45mm | |
Objectie Working Distance | 15.5mm | |
Numerical Aperture(N.A) | N.A.0.12 | |
Objective Immersion Media | Dry Objective | |
Objective Screw Threas | M30.32X0.706 | |
D/BD Objective | Dark Field Objective | |
Objective Outer Dia. | Φ31mm | |
Surface Treatment | Polished Chrome | |
Material | Metal | |
Color | Silver | |
Net Weight | 0.12kg(0.26bs) | |
Applied To: | MT0407 Series Microscope | |
10X Infinity Long Working Distance Plan Achromatic Dark Field Metallurgical Objective | Objective Optical System | Infinite |
Objective Optical Magnification | 10X | |
Objective Type | Plan Achromatic Objective | |
Objective Parfocal Distance | 45mm | |
Objectie Working Distance | 8.7mm | |
Numerical Aperture(N.A) | N.A.0.25 | |
Objective Immersion Media | Dry Objective | |
Objective Screw Threas | M30.32X0.706 | |
D/BD Objective | Dark Field Objective | |
Objective Outer Dia. | Φ31mm | |
Surface Treatment | Polished Chrome | |
Material | Metal | |
Color | Silver | |
Net Weight | 0.11kg(0.24bs) | |
Applied To: | MT0407 Series Microscope | |
20X Infinity Long Working Distance Plan Achromatic Dark Field Metallurgical Objective | Objective Optical System | Infinite |
Objective Optical Magnification | 20X | |
Objective Type | Plan Achromatic Objective | |
Objective Parfocal Distance | 45mm | |
Objectie Working Distance | 8.8mm | |
Numerical Aperture(N.A) | N.A.0.40 | |
Objective Immersion Media | Dry Objective | |
Objective Screw Threas | M30.32X0.706 | |
D/BD Objective | Dark Field Objective | |
Objective Outer Dia. | Φ31mm | |
Surface Treatment | Polished Chrome | |
Material | Metal | |
Color | Silver | |
Net Weight | 0.11kg(0.24bs) | |
Applied To: | MT0407 Series Microscope | |
50X Infinity Long Working Distance Plan Achromatic Dark Field Metallurgical Objective | Objective Optical System | Infinite |
Objective Optical Magnification | 50X | |
Objective Type | Plan Achromatic Objective | |
Objective Parfocal Distance | 45mm | |
Objectie Working Distance | 5.1mm | |
Numerical Aperture(N.A) | N.A.0.75 | |
Objective Immersion Media | Dry Objective | |
Objective Screw Threas | M30.32X0.706 | |
D/BD Objective | Dark Field Objective | |
Objective Outer Dia. | Φ31mm | |
Surface Treatment | Polished Chrome | |
Material | Metal | |
Color | Silver | |
Net Weight | 0.12kg(0.26bs) | |
Applied To: | MT0407 Series Microscope | |
100X Infinity Long Working Distance Plan Achromatic Dark Field Metallurgical Objective | Objective Optical System | Infinite |
Objective Optical Magnification | 100X | |
Objective Type | Plan Achromatic Objective | |
Objective Parfocal Distance | 45mm | |
Objectie Working Distance | 2mm | |
Numerical Aperture(N.A) | N.A.0.90 | |
Objective Immersion Media | Dry Objective | |
Objective Screw Threas | M30.32X0.706 | |
D/BD Objective | Dark Field Objective | |
Objective Outer Dia. | Φ31mm | |
Surface Treatment | Polished Chrome | |
Material | Metal | |
Color | Silver | |
Net Weight | 0.14kg(0.30bs) | |
Applied To: | MT0407 Series Microscope |
|
|
