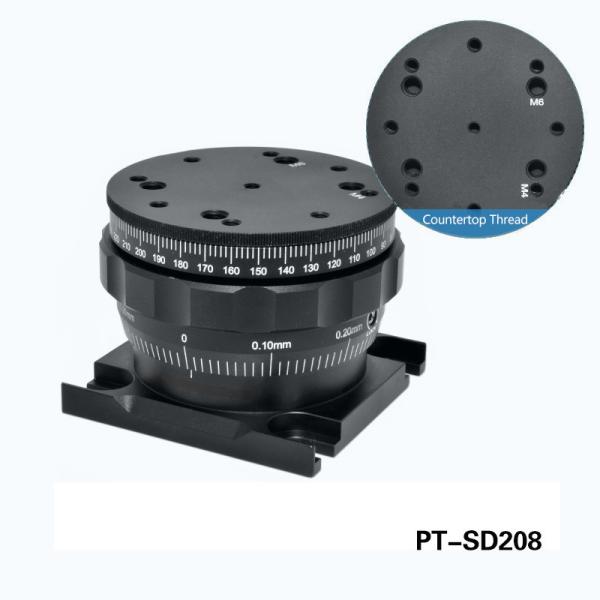

360 Degree Manual Rotating Lifting Stage PT-SD208

The manual rotary lifting platform is a compact installation platform, with a lockable movement range, and the optical elements can be firmly and stably installed at any height without swinging. The sector adjusting ring can provide 26mm non rotating vertical travel with a scale of 0.01mm. And lock the position with the set screw on the side. The rotary platform is provided with a knurled wheel for rough adjustment, and the scale interval of the knurled wheel is 2 °. The platform can be rotated 360 ° to roughly adjust and lock the position.

Features of manual Lab Jack:

1. High stability, lockable vertical and rotary motion lifting platform;

2. The top platform can be rotated 360 ° to roughly adjust and lock the position;

3. The vertical adjustment range is 26mm, from 50.8mm to 76.8mm;

4. Mounting surface Φ 67.0mm；

5. Static and dynamic load capacity 50kg (110.2lbs);

6. A variety of thread array worktops can be selected to meet different experimental needs.

Manual lab jack product specification:

This manual rotary lifting table can provide 26mm vertical adjustment with a scale of 0.01mm. The rotary platform is provided with knurled wheels for rough adjustment, and the scale interval of knurled wheels is 2 °. The platform can be rotated 360 ° to roughly adjust and lock the position.

M4 and M6 mounting holes are provided on the top platform for connecting other components. It is used together with the pressure arm to provide the pressure holding force for the adjustment frame/mounting base of the platform, and can easily and safely fix the prism and cube beam splitter through the screw hole screwed into the top of the platform.

Product application scope:

The products are widely used in industrial automation testing, intelligent robots, intelligent transportation, automotive electronics, aerospace, optical communications, laser technology, medical equipment and other fields.
