High-Precision Cross Roller Guide Manual Linear Stage X-Axis Move Platform
Features of manual slide stage
■ Adopt high-precision cross roller guide rail, with high precision, large bearing capacity and long service time.
■ Precisely machined base and table make the running straightness, deflection, pitch and motion parallelism of the translation table within a certain accuracy range.
■ Displacement adjustment adopts micrometer head or differential micrometer head.
■ The micro resolution ensures the micro feed of the table.
■ The micrometer head is placed in the center of the translation table, which is easy to operate.
■ Spring return is adopted to eliminate axial clearance.
■ The installation holes with standard hole spacing are distributed on the table and base for convenient installation and combination.
■ It can form a multi-dimensional adjustment frame with other series of displacement tables.
Type and characteristics of slide guide
Cross guide rail type: high precision, easy to adjust preload.
Steel bar ball type: light weight, smooth movement, light load, low price.
Linear ball type: high precision, high rigidity, thin type.
Dovetail groove type: large movement, fast movement and high working frequency.
Manual slide stage product specification
| Item Number | PT-SD106G |
| Platform Size | 53mm*53mm |
| Actuator Type | Micrometer Head in Center |
| Travel Range | 25mm |
| Min Scale | 10μ/0.5μ |
| Positional Accuracy | 3μ/1.5μ |
| Min Adjust Distance | 2μ/0.1μ |
| Travel Guide | Precision V-Groove & Crossed Roller Bearing |
| Load Capacity | 15kg |
| Straightness | 3μ |
| Yaw | 25″ |
| Pitch | 20″ |
| Table Parallelism | 25μ |
| Motion Parallelism | 10μ |
| Net Weight | 0.52kg |
| Material – Finish | Aluminum Alloy - Black-Anodized |

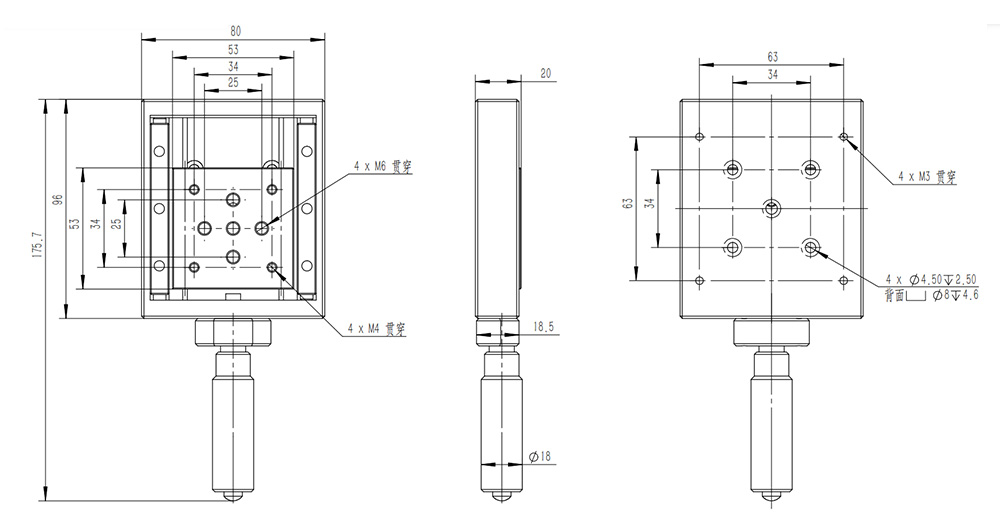

Dimension drawing of manual slide stage:
The precision manual displacement table is a precision instrument for positioning by moving position, which is mainly controlled by the moving system of the displacement table. Its resolution is selected as an important indicator of the displacement table, so the purchase should understand the resolution of the precision manual displacement table.
Resolution represents the capacity of displacement station position increment, which can be recognized by the mobile system. Therefore, the smaller the increment of precision manual displacement station, the higher the resolution. Our company has been engaged in precision manual displacement table for many years, and can produce according to the needs of manufacturers.
Generally, it is expensive to purchase a precision manual displacement table with high resolution, because the resolution of the displacement table affects its operation performance, that is, the increment of the displacement table. When selecting the manual displacement table, we must choose the one with high resolution, because many mechanical equipment have high accuracy requirements, such as aerospace equipment, and every minute of error will have a significant impact. Therefore, the precision manual displacement table is mainly used in the domestic mechanical processing and production field, and the accuracy of the equipment is related to the quality and performance of the product. The precision manual displacement table can adjust the translation and rotation of the object, which requires high accuracy. The higher the general accuracy is, the smaller the error is. In addition, the displacement table itself is relatively small, so it can ensure that the size error of displacement is relatively small, and even can be controlled within nanometers.
The precision manual displacement table produced by Xinqiao Automation Equipment Co., Ltd. has relatively high accuracy, small error and small size, so it is highly praised by customers in the market. Welcome new and old customers to come and buy.
|
|
