Optical Experiment Displacement Platform Shear Manual Lab Jack With Large Load PT-SD409

This precision manual lifting platform is a new product launched by PDV. The main material of this series of products is made of high strength aluminum alloy, the surface is blackened by anodic oxidation, precision grinding screw drive, equipped with locking device and digital display scale, stable structure, convenient and quick adjustment.

The lifting platform is mainly used for occasions that need lifting adjustment. Its function is similar to that of fine-tuning lifting support. However, the adjustment stability is better, it can withstand larger gravity, and the adjustment resolution is higher.

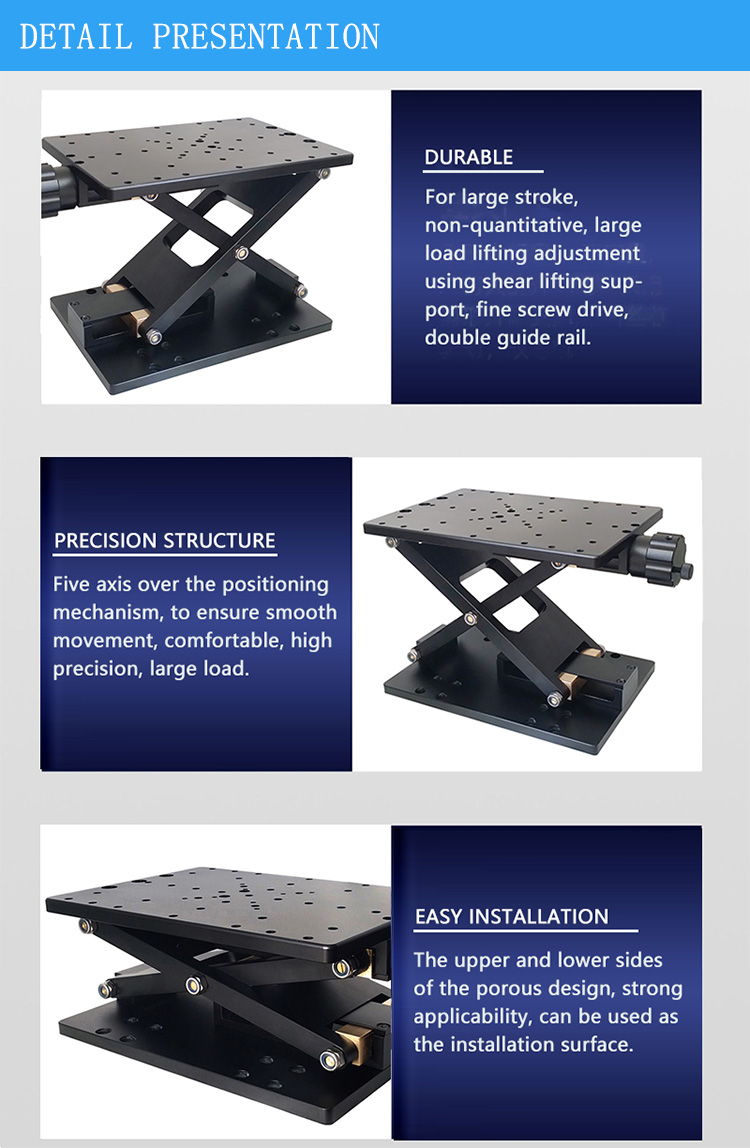

Manual lifting platform details

1.Durable
For large stroke, non-quantitative, large load lifting adjustment using shear lifting support, fine screw drive, double guide rail.

2.Precision structure
Five axis over the positioning mechanism, to ensure smooth movement, comfortable, high precision, large load.

3.Easy installation
The upper and lower sides of the porous design, strong applicability, can be used as the installation surface.

Product specification:

How to choose the right lifting platform

First determine the lifting platform load is how much, the load is not only static load data, but also static load, dynamic load, impact load are calculated.

The second is the lifting platform lifting speed and speed ratio, need to determine the actual use of equipment in the condition of the need to travel up and down speed is how much, and then choose according to the specific situation. And if the speed is very slow, not to meet the requirements, but also need to be equipped with a reducer to achieve the established speed.

The selection of travel height in the use of travel to leave a margin, at the same time fully consider the output screw lift has no protective tube or dustproof telescopic cover, screw shaft movement inertia, a variety of top output components.

There is to determine the external connection of the lifting platform.

Finally, the use conditions of the lifting platform, to see if the customer has special requirements, such as anti-corrosion environment, high temperature and high pressure environment, poor outdoor conditions, etc.

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
