    Linear Guide Rail Long Distance Electric Linear Mobile Platform For Optical Microscope

    Linear Guide Rail Long Distance Electric Linear Mobile Platform For Optical Microscope

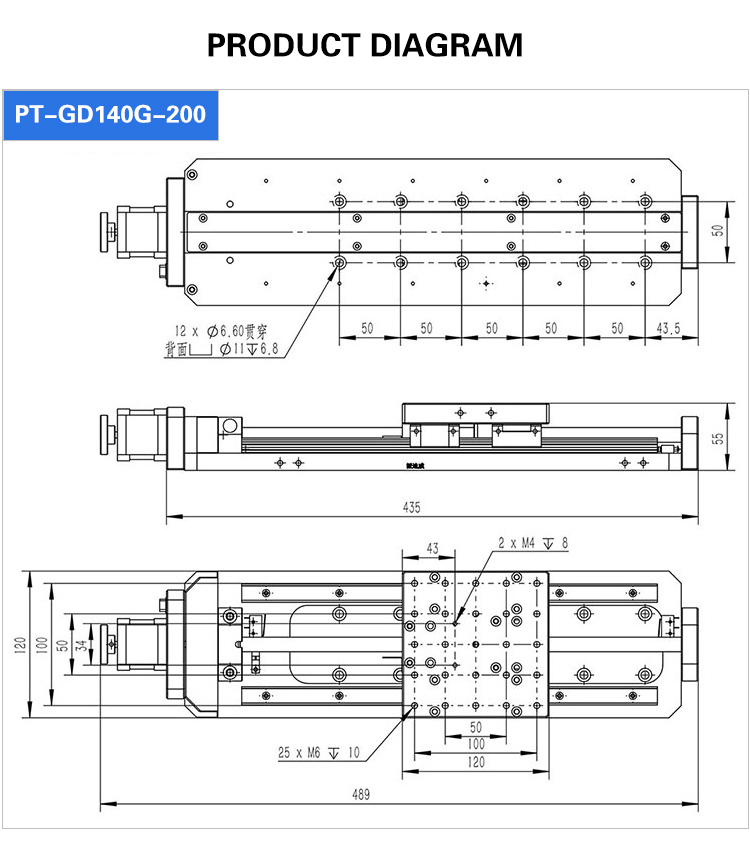

    High precision Electric Linear Mobile Platform: PT-GD140G-200


    The electric linear platform has a high degree of serialization, strong versatility, and is easy to assemble. The electric translation platform is suitable for scientific research, industrial users' precision optical experiments, precision positioning, precision machining, and other fields. Electric translation platform is an ultra high cost performance product for mobile platforms.


    Product characteristics of electric linear platform:


    1. Standard equipped with a stepper motor, the motion controller can achieve automatic control of it.


    2. Precise grinding of the bottom plate of the electric moving table and a reasonable fixing method of the guide rail greatly reduce the pitch and yaw of the electric moving table, greatly improving the straightness and parallelism of movement, and being suitable for various environments.


    3. The anti loosening and anti axial movement structure effectively prevents screw loosening and axial movement, effectively ensuring repeated positioning accuracy and absolute positioning accuracy, especially suitable for high-speed reciprocating use of precision ball screw drive. Good repeatability and absolute positioning accuracy, small axial clearance, and long service life.


    4. The base has threaded holes and through holes with standard hole pitch for easy installation and fixation.


    5. Both ends are equipped with zero and limit switches to facilitate accurate positioning and protection of the product.


    6. The stepper motor and the ball screw are connected through an imported elastic coupling, which has good deflection elimination performance, greatly reducing eccentric disturbance, and reducing noise.


    7. Replaceable servo motor, grating ruler for closed-loop control.


    Product specification of electric linear platform


    ­­Model Number

    PT-GD140G-200

    Structure

    Travel Range(mm)

    200

    Platform(mm)

    120x120

    Screw Specifications

    Precise Ball Screw (4mm of guide)

    Travel Guide

    High Precision Linear Slide Rail

    Stepper Motor

    42(1.8°)

    Material

    Aluminum Alloy

    Surface Preparation

    Black-Anodized

    Load Capacity(Kg)

    30

    Weight(Kg)

    5.2

    Accuracy

    8 Subdivision Resolution(μm)

    2.5

    Max Velocity

    40mm/sec

    Repeatability(μm)

    5

    Absolute Accuracy(μm)

    8

    Straightness(μm)

    6

    Moving Parallelism(μm)

    15

    Pitching

    50"

    Yawing

    25"

    Backlash(μm)

    2

    Lost Motion(μm)

    5

    Other

    Installing Braking Function (Optional)

    Installing Grating Ruler (Optional)

    Reloading Servo Motor (Optional)

    Installing Dirt Shroud (Optional)



    Application of electric linear platform in microscopy


    Currently, microscopes are almost always used in conjunction with a stage to view samples from different angles, and it is also convenient to compare multiple samples simultaneously. Electrically controlled translation tables are required for the control of electric microscope stages, microscope positioning, programmable joystick control microscopes, fluorescent microscopes, and ND filters for solid-state laser systems used in confocal microscopes.
