High Precision Corrosion-Resistant Motorized XY Two Axis Mobile Stage

This two-dimensional motorized linear stage (XY direction) is propelled by a precision ball screw and driven by a two-phase stepper motor. A standard electric platform can be equipped with a grating ruler to achieve closed-loop feedback control. Adopting a precision linear guide rail structure, it has greater load-bearing capacity and better stability and stability in movement. There are installation holes on the bottom of the two-dimensional electric platform, which can be directly fixed with screws on various optical flat plates and optical platforms for operation.

Product characteristics of motorized XY two axis mobile stage

◆ Precision ball screw drive, with good repeatability and absolute positioning accuracy, small axial clearance, and long service life.

◆ The guide rail adopts high-precision linear slider guide rail (connected to the bottom plate as a whole), which is comfortable in movement and suitable for single or multi axis combination use.

◆ Unique anti loosening and anti shaft movement structure, effectively preventing screw loosening and axial movement, effectively ensuring repeated positioning accuracy and absolute positioning accuracy.

◆ Ultra precision machining and precision grinding of the bottom plate, with strict and unique assembly process, ensure the consistency of product performance with good mechanical performance.

◆ The motor and ball screw are connected through imported high-quality elastic couplings, which have good anti deviation performance and can eliminate backlash and torsional vibration.

◆ Zero positioning of photoelectric switch, with limit switches at both ends, and optional power outage protector when used vertically.

◆ Stepping motor and RS232 control interface are standard configuration, which can be controlled with the motion controller independently developed by our company.

◆ The servo motor can be replaced to achieve high-speed and heavy load. The replacement of the servo motor provides free anti-collision safety devices, effectively protecting the safety of equipment and personnel.

◆ Provide free technical support and accept product customization or customization.

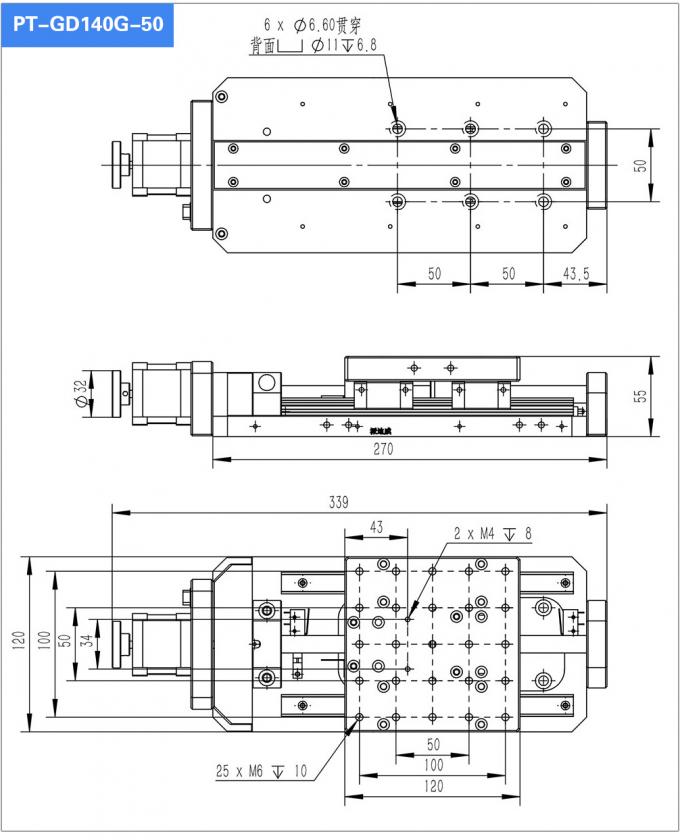

Product specification parameters
