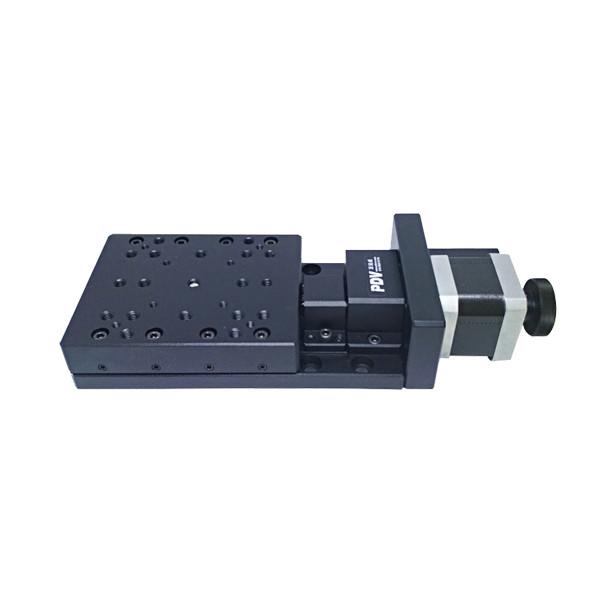

Ultrathin Electric Linear Translation Table Travel Range 30mm - 75mm Travel Range 30mm - 75mm PP110 - 30

High Precision Motorized Linear Stages : PP110-30 , PP110-50 , PP110-75

Product features

1 The stepper motor with 2-phase and 1.8° step angle will be sued in this model.

2 Low-profile, high-accuracy and apply to low bearing capacity, low speed.

3 The structure of crossed-roller bearing requires the precise movement.

4 Original position and limit switches are at both ends which can supply the precision positioning and protection.

5 Applies to use in single axis or assemble into multi-axis stage.

Rotation with super grinding ,slide with v-shapped rail ,elastic couplings have adopted high quality high-quality products,supply quality assurance .The design of the limited switches and zero switch and standard interface are converient for output of DB9 ;Equipped with handwheel in the back of motor ,achieve manual adjustment;Standard hole is convenient for combined-dimensional . Application for little height of space,little travel,high resolution fields.

Product specification

Product diagram

This product is a precision electric slide specially designed to solve the problems of small size and high reuse frequency. The main material of the product is high-quality aluminum, with black anodizing treatment on the surface, good wear resistance and beautiful appearance.

The guide rail adopts cross guide rail, which has high strength, strong load capacity and good durability. The driving mechanism is ball screw, which is equipped with five phase stepping motor as standard, which can provide high resolution and positioning accuracy.

This product is very suitable for integration in automation equipment and precision instruments and equipment with high requirements for space, size and weight. It is also suitable for industrial production lines with small motion range and high reciprocating frequency.
