XYZ Displacement Table Electric Displacement Table Angle Turntable Lifting Table
It is composed of PT-GD140GD electric translation platform, PX110-100 electric rotating platform and PT-GD401 electric lifting platform.
Product features:
The stepper motor port is equipped as standard, and the motion controller can realize automatic control.
The lifting platform adopts shear type lifting support, double guide rails and five axes through the positioning mechanism, with stable movement, large bearing capacity and long service life.
It is driven by precision research and matching lead screw, which is comfortable to move, can rise and fall arbitrarily and has small empty return.
The stepping motor and screw rod are connected through high-quality elastic coupling, with synchronous transmission and good depolarization performance, which greatly reduces eccentric disturbance and low noise.
Product specification:
PT-GD140GD electric translation platform
Model Number | PT-GD140G-50 | PT-GD140G-100 | PT-GD140G-150 | PT-GD140G-200 | PT-GD140G-300 | PT-GD140G-400 | PT-GD140G-500 | ||
Structure | Travel Range(mm) | 50 | 100 | 150 | 200 | 300 | 400 | 500 | |
Platform(mm) | 120x120 | 120x120 | 120x120 | 120x120 | 120x120 | 160x160 | 160x160 | ||
Screw Specifications | Precise Ball Screw (4mm of guide) | Ball Screw (5mm of guide) | |||||||
Travel Guide | High Precision Linear Slide Rail | ||||||||
Stepper Motor | 42(1.8°) | 57(1.8°) | |||||||
Material | Aluminum Alloy | ||||||||
Surface Preparation | Black-Anodized | ||||||||
Load Capacity(Kg) | 30 | 50 | |||||||
Weight(Kg) | 2.8 | 3.4 | 4.5 | 5.2 | 6.3 | 7.2 | 8.3 | ||
Accuracy | 8 Subdivision Resolution(μm) | 2.5 | 3.125 | ||||||
Max Velocity | 20mm/sec | 40mm/sec | 50mm/sec | ||||||
Repeatability(μm) | 5 | ||||||||
Absolute Accuracy(μm) | 8 | ||||||||
Straightness(μm) | 5 | 6 | 8 | ||||||
Moving Parallelism(μm) | 10 | 15 | 20 | ||||||
Pitching | 25" | 50" | 60" | ||||||
Yawing | 20" | 25" | 30" | ||||||
Backlash(μm) | 2 | ||||||||
Lost Motion(μm) | 3 | 5 | |||||||
Accessory | Installing Braking Function (Optional) | ||||||||
Installing Grating Ruler (Optional) | |||||||||
Reloading Servo Motor (Optional) | |||||||||
Installing Dirt Shroud (Optional) | |||||||||
PX110-100 electric rotating platform
Item Number | PX110-100 | |
Structure Specifications | Rotation Range | 360° of Continuous Rotation |
Diameter of Platform | Ø100mm | |
Drive Mechanism | Worm Gear | |
Worm Gear Ratio | 180 : 1 or 90:1 (Choose one of the two) | |
Stepper Motor (1.8°) | 42BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle | |
Material – Finish | Aluminum Alloy - Black-Anodized | |
Load Capacity | 45 kg | |
Weight | 1.7 kg | |
Accuracy Specifications | Design Resolution | 0.01°, Non-MS Driver 0.0005°=1.8”, 20MS Driver |
Rotational Velocity (Max) | 25°/sec | |
Repeatability | 0.005°=18” | |
Absolute On-Axis Accuracy | 0.01°=36” | |
Run-Out of Top Plate | 15μm | |
Backlash | 0.005°=18” | |
Eccentricity | 5μm | |
Lost Motion | 0.05°=18″ | |
Parallelization | 80μm | |
PT-GD401 electric lifting platform
Item Number | PT-GD401 | |
Structure description | Travel Range | 60±2 mm |
Dimension of Platform | 120mm×80mm | |
Drive Mechanism | Grinding Screw | |
Travel Guide | Slide Rail | |
Stepper Motor (1.8°) | SST42D2121 - Stepping Motor with 2-Phases & 1.8° of Step Angle | |
Material – Finish | Aluminum Alloy - Black-Anodized | |
Load Capacity | 5kg | |
Weight | 1.15kg | |
Accuracy description | Minimum Adjust Distance | 5μm Non-MS Driver; 0.25μm/Pulse, 20MS Driver |
Max Velocity | 5mm/sec | |
Repeatability | 10μ | |
Backlash | 4μ | |
Lost Motion | 3μ | |

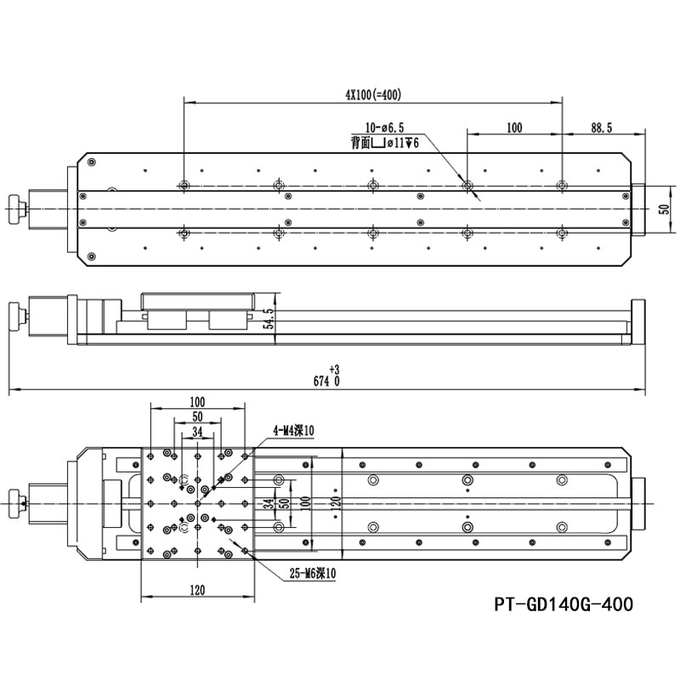

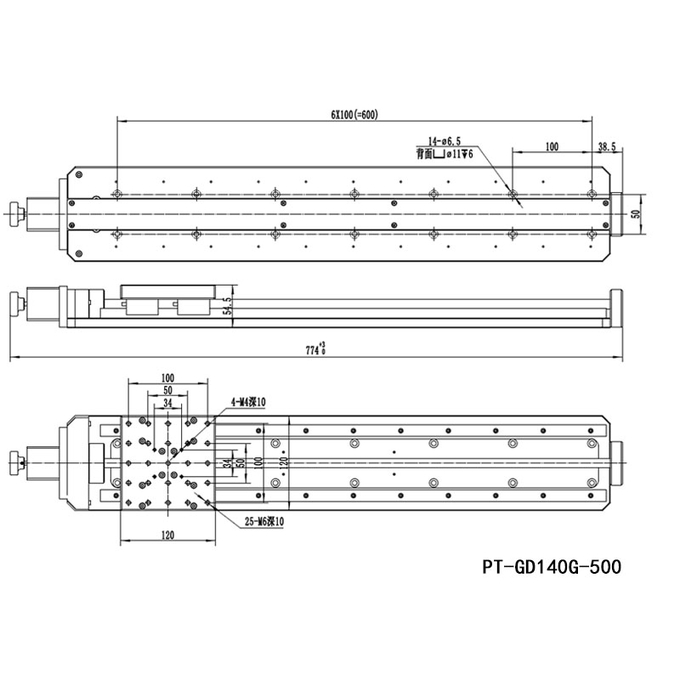

Product Dimension Map:

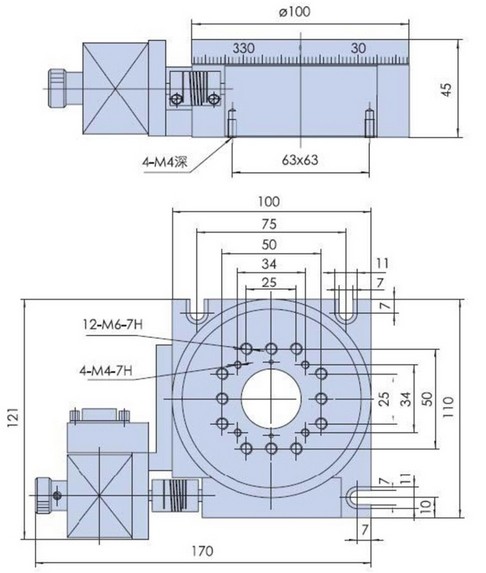

PX110-100 electric rotating platform:
PT-GD401 electric lifting platform:
|
|
