Round Guide Rail Ball Screw Precision Displacement Stage Slide Stage Motorized Linear Stage PT-GD130P

Product description

The motorized linear stage is an electric linear sliding table with high precision, high speed and high load capacity, which is driven by linear motor, guided by linear slider guide rail and controlled by closed-loop device (usually grating ruler). PDV has been committed to the research of linear motor slide. Combined with the accumulation and experience in improving motion accuracy over the years, and with our industry-leading processing, assembly and testing technology, we can provide you with high-quality and all-round linear motor slide solutions.

Product features

1 High precise ball screw provides high-performance.

2 Supported high precise linear ball bearing ensures accurate linear motion and high-loading.

3 The model PT-GD130P series is ideal for the long travel range by the material of aluminum alloy sections.

4 Original position and limit switches at both ends which can supply the precision positioning and protection.

5 The PT-GD130P positioning stages are ideally suited for applications that require long travel and high-load capacity such as measurement and inspection. Microswitches allow homing and overdriving protection in both forward and reverse directions.

Product specification

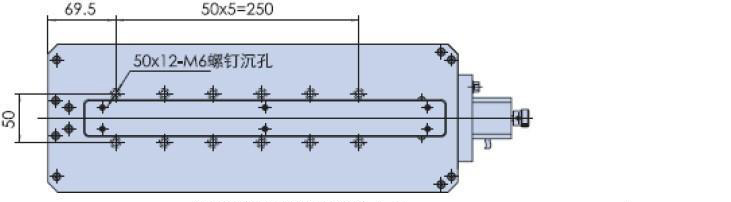

Product diagram

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
