Infinity Achromatic Objective Lens 45mm Objective Parfocal Distance

Beijing PDV Instrument Co., Ltd.
Contact Now
    Buy cheap Infinity Achromatic Objective Lens 45mm Objective Parfocal Distance from wholesalers

    Buy cheap Infinity Achromatic Objective Lens 45mm Objective Parfocal Distance from wholesalers
    • Buy cheap Infinity Achromatic Objective Lens 45mm Objective Parfocal Distance from wholesalers

    Infinity Achromatic Objective Lens 45mm Objective Parfocal Distance

    Ask Lasest Price
    Brand Name : PDV
    Model Number : WJ-2004X , WJ 2010X , WJ 2040X , WJ 2100X
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Price : Negotiable
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    Infinity Achromatic Objective Lens 45mm Objective Parfocal Distance

    Biological Microscope Objective , Infinity Achromatic Objective Lens WJ - 2004X


    Specification:


    Biological

    Notes

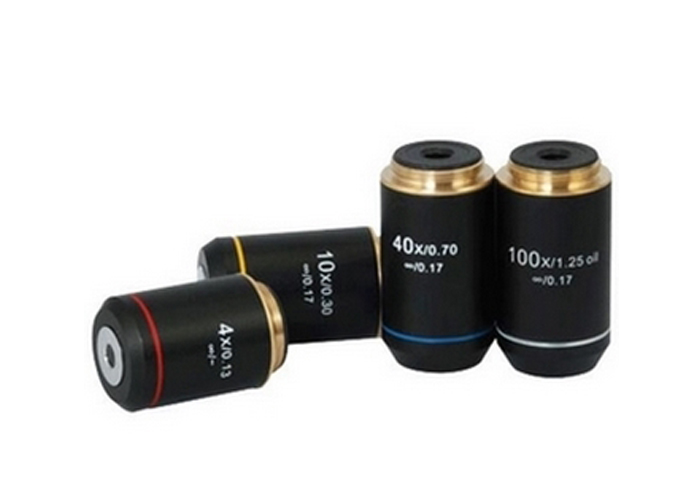

    4x 10x 40x 100x Infinity Achromatic Objective

    4X Infinity Achromatic Obkective

    Objective Optical System

    Infinite

    Objective Optical Magnification

    4X

    Objective Type

    Achromatic Objective

    Objective Parfocal Distance

    45mm

    Objective Focal Length

    50mm

    Objectie Working Distance

    12.31mm

    Numerical Aperture(N.A)

    N.A.0.10

    Objective Resolution

    2.58μm

    Objective Cover Glass Thickness

    0.17

    Objective Immersion Media

    Dry Objective

    Objective Screw Threas

    4/5'x1/36"

    Objective Outer Dia.

    Φ19mm

    Surface Treatment

    Electropalating Black

    Material

    Metal

    Color

    Black

    Net Weight

    0.06kg(0.13lbs)

    Applied To:

    BM0301 Series Microscope

    10X Infinity Achromatic Obkective

    Objective Optical System

    Infinite

    Objective Optical Magnification

    10X

    Objective Type

    Achromatic Objective

    Objective Parfocal Distance

    45mm

    Objective Focal Length

    20mm

    Objectie Working Distance

    6.75mm

    Numerical Aperture(N.A)

    N.A.0.25

    Objective Resolution

    1.12μm

    Objective Cover Glass Thickness

    0.17

    Objective Immersion Media

    Dry Objective

    Objective Screw Threas

    4/5'x1/36"

    Objective Outer Dia.

    Φ20.5mm

    Surface Treatment

    Electropalating Black

    Material

    Metal

    Color

    Black

    Net Weight

    0.07kg(0.15lbs)

    Applied To:

    BM0301 Series Microscope

    40X Infinity Achromatic Obkective

    Objective Optical System

    Infinite

    Objective Optical Magnification

    40X

    Objective Type

    Achromatic Objective

    Objective Parfocal Distance

    45mm

    Objective Focal Length

    5mm

    Objectie Working Distance

    0.76mm

    Numerical Aperture(N.A)

    N.A.0.70

    Objective Resolution

    0.48μm

    Objective Cover Glass Thickness

    0.17

    Objective Immersion Media

    Dry Objective

    Spring Mounted Objective

    Spring Mounted Objective

    Objective Screw Threas

    4/5'x1/36"

    Objective Outer Dia.

    Φ21mm

    Surface Treatment

    Electropalating Black

    Material

    Metal

    Color

    Black

    Net Weight

    0.08kg(0.18lbs)

    Applied To:

    BM0301 Series Microscope

    100X Infinity Achromatic Obkective

    Objective Optical System

    Infinite

    Objective Optical Magnification

    100X

    Objective Type

    Achromatic Objective

    Objective Parfocal Distance

    45mm

    Objective Focal Length

    2mm

    Objectie Working Distance

    0.12mm

    Numerical Aperture(N.A)

    N.A.1.25

    Objective Resolution

    0.27μm

    Objective Cover Glass Thickness

    0.17

    Objective Immersion Media

    Oil lmmersion Objective

    Spring Mounted Objective

    Spring Mounted Objective

    Objective Screw Threas

    4/5'x1/36"

    Objective Outer Dia.

    Φ21mm

    Surface Treatment

    Electropalating Black

    Material

    Metal

    Color

    Black

    Net Weight

    0.08kg(0.18lbs)

    Applied To:

    BM0301 Series Microscope


    Purpose of various objective lenses:


    4X: the imaging of insects, paper money, maintenance of electronic motherboard, etc. (you can see objects alone) is clearer than that of magnifying glass.


    10x: look at the cell, look for the image, and preliminarily zoom in.


    20x: look at mites, aquatic products, etc.


    40x: look at cells, blood, sperm, eggs, artificial insemination, crude bacteria, etc.


    100x: medical testing, blood testing, bacteria, scientific research, students' viewing of specimens, etc.


    Q: what does oil mean?

    A: the bullet means that the end of the objective lens is equipped with a bullet sheath. When observing, the object retracts and rebounds, which plays the role of protecting the specimen and the objective lens. Medium and high power objective lenses, such as 40 times (inclusive) and above multiple bands. The oil is 100x. When using the objective lens, immerse the lens in the oil for observation. The oil is cedar oil and special oil for microscope.

    PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages, High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.


    It is used for the fixation and adjustment of objective lens and lens.Meet the requirements of your experimental scenario.
