    Dovetail Optical Manual Goniometer Stage Swinging Sliding Table

    Manual Dovetail Optical Swinging Sliding Table , Goniometer Stage PT-SD301


    Precision manual Angle position station: PT-SD301


    Manual Angle positioning platform PT-SD301, the main material of the product is made of high quality aluminum alloy, standard dovetail guide rail, worm wheel driven manual Angle positioning platform. Table size is 65mm x 65mm, stable and reliable operation, high sensitivity, with self-locking function, the product is suitable for manual Angle adjustment has high requirements of the field. The mounting holes of various standard holes on the table are suitable for different needs. The standard fixing holes below are convenient to connect it with other slide tables to form a multidimensional slide table.


    Product features:


    ■ The product provides small Angle rotation adjustment.


    ■ Fine grinding adjustable dovetail guide rail.


    Worm gear drive, comfortable movement, precision and reliable.


    ■ Smooth operation of the table, small swing and tilt.


    ■ Pair design, superposition after the rotation center is the same point, can be orthogonal two-axis concentric rotation adjustment.


    ■ Hand wheel lock, safe and reliable.


    ■ The table is placed horizontally with standard connecting hole, which can form multi-dimensional adjustment rack with other series products.


    Product parameters:


    Model

    PT-SD301

    Platform Size

    65mm×65mm

    Rotation Range

    ±10°

    Height of Rotation Center

    100mm

    Deviation of Rotation Center

    φ0.1mm

    Drive Mechanism

    Worm drive

    Travel Guide

    V-guide + ball

    Driving position

    Dovetail

    Graduations

    Minimum Readout

    5’

    Minimum Adjust Distance

    30”

    Yawing

    200"

    Rolling

    200"

    Material – Finish

    Aluminum Alloy - Black-Anodized

    Load Capacity6Kg
    Weight0.48kg

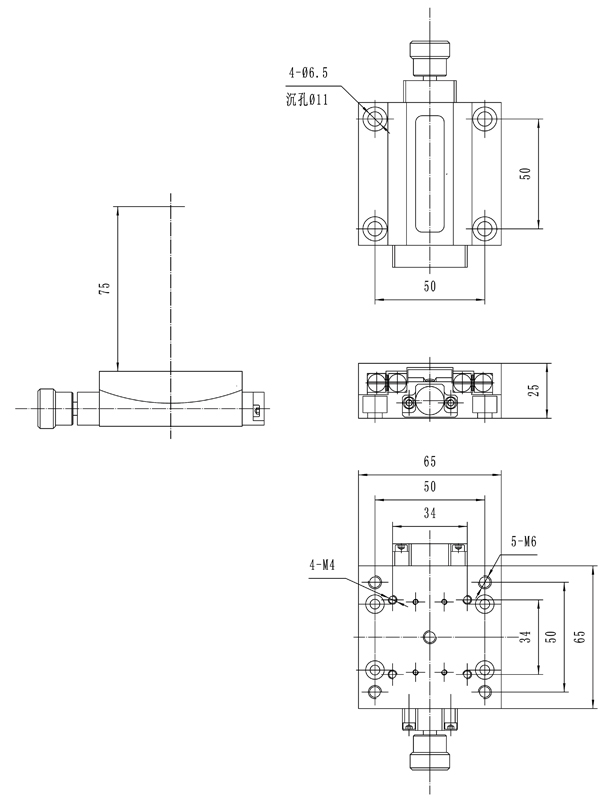

    Product Dimension Map:
