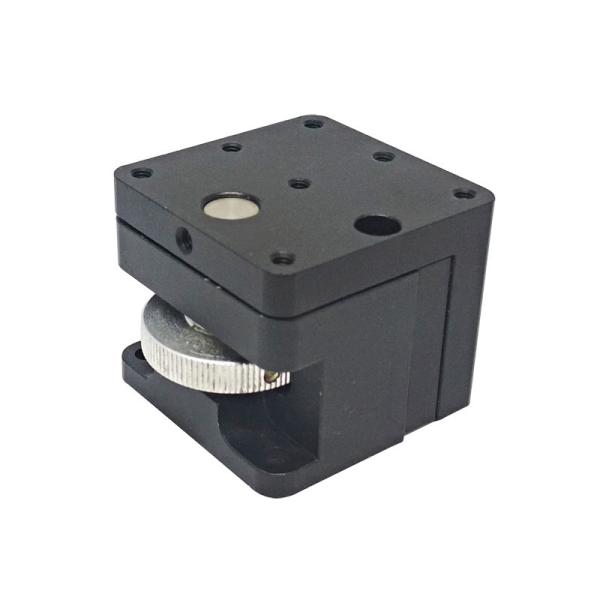

Manual Vertical Translation Stage , Optical Sliding Lift , 5mm Travel PT-SD16-60

Precision manual lifting table: PT-SD16-60

This precision manual lifting platform is a new product launched by PDV. The main material of this series of products is made of high-strength aluminum alloy, the surface is anodized and blackened. It is driven by screw and equipped with dovetail guide rail. The structure is stable and easy to adjust.

characteristic:

The main material is aluminum alloy, light weight, can be built into other devices.

High quality screw drive, high repeat positioning accuracy, long life

Dovetail guide rail can realize high-precision and smooth lifting and moving.

Standard hole position on bottom and table for easy installation and combination.

Product parameters:

The manual lifting platform comprises a lifting mechanism and a platform body fixed on the top of the lifting mechanism and a seat body at the bottom, and the lifting mechanism is composed of a multi-section telescopic rod and a positioning sleeve arranged on the telescopic rod. The lifting mechanism of the manual lifting platform is simple and compact in structure, low in manufacturing cost, and the telescopic rod structure without hinged parts greatly improves the service life of the manual lifting platform in the laboratory and reduces the maintenance cost.

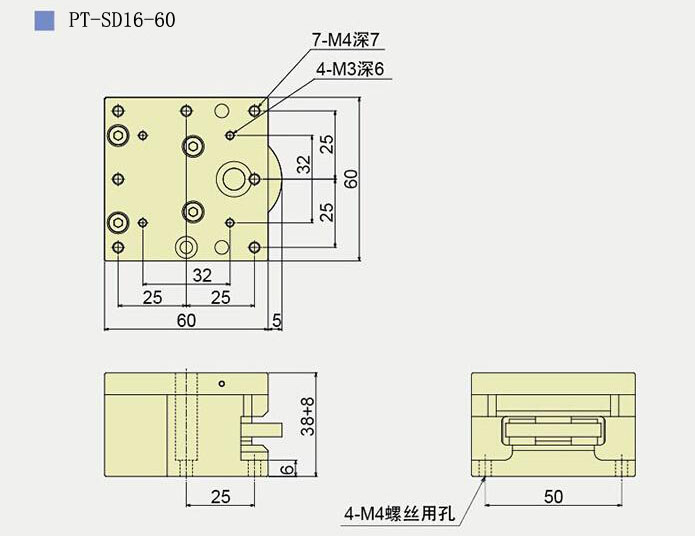

Product Dimension Map:
