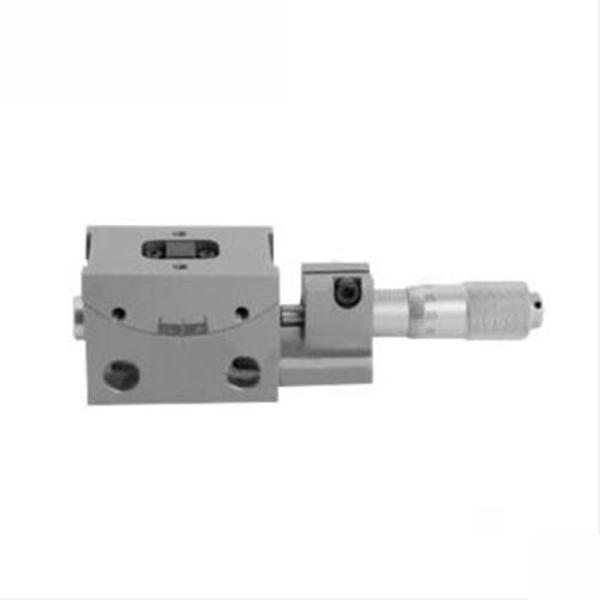

Precise Manual Goniometer Stage , Optical Dovetail Platform PT - SD309

Precision manual Angle position station: PT-SD309 , made of stainless steel, with high precision parts and micro card, has good movement characteristics when rotating, the end jump, diameter jump and other key indicators can reach the international level of similar products. The product is suitable for manual Angle adjustment has high requirements in the field.

Product features:

※ Products provide small Angle rotation adjustment.

Adjustable dovetail guide rail, high precision, large bearing capacity.

※ Micrometer head drive, pressure spring reset, small return, comfortable movement, precision and reliability.

※ Smooth operation of the table, small swing and tilt.

Hand wheel lock, safe and reliable.

※ The table is placed horizontally with standard connecting hole, which can form multi-dimensional adjustment rack with other series products.

Product parameters:

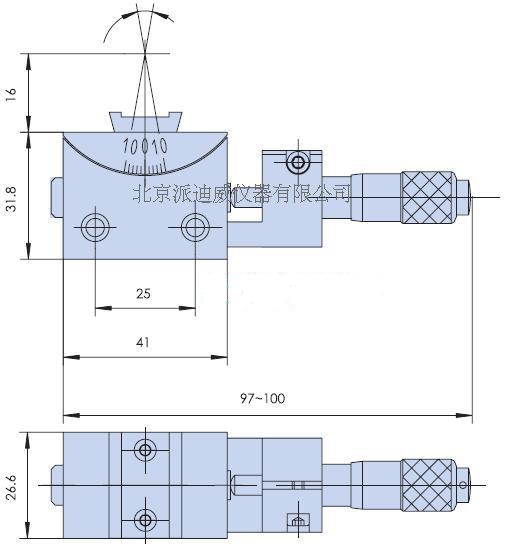

Product Dimension Map:
