    95mm Metallographic Achromatic Objective Lens APO Long Working Distance

    Ask Lasest Price
    Brand Name : PDV
    Model Number : CCW-2X , CCW-5X , CCW-10X , CCW-20X , CCW-50X , CCW-100X,CCW-20XD,CCW-50XD
    Price : Negotiable
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

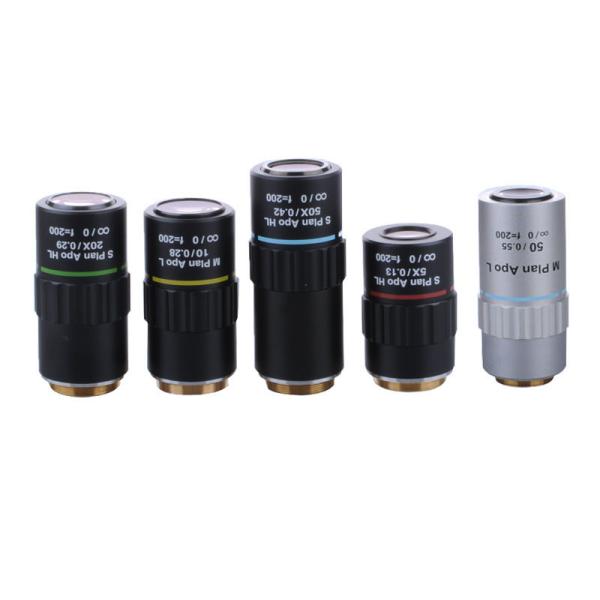

    95mm Metallographic Achromatic Objective Lens APO Long Working Distance

    APO Long Working Distance Objective , 95mm Metallographic Objective CCW-2X/5X/10X/20X/50X/100X/20XD/50XD


    Features:


    1.With Long Working Distance , Plan Apo and Big Field of View objective For Visible Light Imaging observation .
    2.Infinitive Optical System, Tube Lens Focal Length 100mm .

    3.With Long Working Distance , Plan Apo and Big Field of View objective .

    4.Parfocal Distance 95mm.

    5.Objective Screw thread M26X1/36" .

    6. Infinity optical system.


    Product specification:


    Item Number

    Metallurgical Objective

    Notes

    2X.5X.10X.20X 50x 100x Infinity Super-Long Working Distance Plan Apochromatic Metallurgical Objective

    CCW-2X

    2X Infinity Corrected Long Working Distance Objective

    Objective Optical System

    Infinite

    Objective Optical Magnification

    2X

    Objective Type

    Plan Apochromatic Objective

    Objective Parfocal Distance

    95mm

    Objective Focal Length

    100mm

    Objectie Working Distance

    34.6mm

    Numerical Aperture(N.A)

    N.A.0.055

    depth of focus

    91μm

    Objective Resolution

    5μm

    Objective Cover Glass Thickness

    /0

    Objective Immersion Media

    Dry Objective

    Objective Screw Threas

    M26X1/36"

    Objective Outer Dia.

    Φ32.2mm

    Surface Treatment

    Electroplating Black

    Material

    Aluminum

    Color

    Black

    Net Weight

    0.12kg(0.26bs)

    CCW-5X

    5X Infinity Long Working Distance Plan Achromatic Dark Field Metallurgical Objective

    Objective Optical System

    Infinite

    Objective Optical Magnification

    5X

    Objective Type

    Plan Apochromatic Objective

    Objective Parfocal Distance

    95mm

    Objective Focal Length

    40mm

    Objectie Working Distance

    44.5mm

    Numerical Aperture(N.A)

    N.A.0.13

    depth of focus

    14μm

    Objective Resolution

    2μm

    Objective Cover Glass Thickness

    /0

    Objective Immersion Media

    Dry Objective

    Objective Screw Threas

    M26X1/36"

    Objective Outer Dia.

    Φ32.2mm

    Surface Treatment

    Electroplating Black

    Material

    Aluminum

    Color

    Black

    Net Weight

    0.18kg(0.40bs)

    CCW-10X

    10X Infinity Long Working Distance Plan Achromatic Dark Field Metallurgical Objective

    Objective Optical System

    Infinite

    Objective Optical Magnification

    10X

    Objective Type

    Plan Apochromatic Objective

    Objective Parfocal Distance

    95mm

    Objective Focal Length

    21mm

    Objectie Working Distance

    34mm

    Numerical Aperture(N.A)

    N.A.0.28

    depth of focus

    3.5μm

    Objective Resolution

    1μm

    Objective Cover Glass Thickness

    /0

    Objective Immersion Media

    Dry Objective

    Objective Screw Threas

    M26X1/36"

    Objective Outer Dia.

    Φ35mm

    Surface Treatment

    Electroplating Black

    Material

    Aluminum

    Color

    Black

    Net Weight

    0.19kg(0.42bs)

    CCW-20X

    20X Infinity Long Working Distance Plan Achromatic D

    Objective Optical System

    Infinite

    Objective Optical Magnification

    20X

    Objective Type

    Plan Apochromatic Objective

    Objective Parfocal Distance

    95mm

    Objective Focal Length

    10mm

    Objectie Working Distance

    31mm

    Numerical Aperture(N.A)

    N.A.0.29

    depth of focus

    3.5μm

    Objective Resolution

    1μm

    Objective Cover Glass Thickness

    /0

    Objective Immersion Media

    Dry Objective

    Objective Screw Threas

    M26X1/36"

    Objective Outer Dia.

    Φ35mm

    Surface Treatment

    Electroplating Black

    Material

    Aluminum

    Color

    Black

    Net Weight

    0.22kg(0.49bs)

    CCW-50X

    50X Infinity Long Working Distance Plan Achromatic D

    Objective Optical System

    Infinite

    Objective Optical Magnification

    50X

    Objective Type

    Plan Apochromatic Objective

    Objective Parfocal Distance

    95mm

    Objective Focal Length

    4mm

    Objectie Working Distance

    20.5mm

    Numerical Aperture(N.A)

    N.A.0.42

    depth of focus

    1.6μm

    Objective Resolution

    0.7μm

    Objective Cover Glass Thickness

    /0

    Objective Immersion Media

    Dry Objective

    Objective Screw Threas

    M26X1/36"

    Objective Outer Dia.

    Φ35mm

    Surface Treatment

    Electroplating Black

    Material

    Aluminum

    Color

    Black

    Net Weight

    0.92kg(0.64bs)

    CCW-100X

    100X Infinity Long Working Distance Plan Achromatic D

    Objective Optical System

    Infinite

    Objective Optical Magnification

    100X

    Objective Type

    Plan Apochromatic Objective

    Objective Parfocal Distance

    95mm

    Objective Focal Length

    2mm

    Objectie Working Distance

    12.5mm

    Numerical Aperture(N.A)

    N.A.0.55

    depth of focus

    0.9μm

    Objective Resolution

    0.5μm

    Objective Cover Glass Thickness

    /0

    Objective Immersion Media

    Dry Objective

    Objective Screw Threas

    M26X1/36"

    Objective Outer Dia.

    Φ35mm

    Surface Treatment

    Electroplating Black

    Material

    Aluminum

    Color

    Black

    Net Weight

    0.12kg(0.86bs)



    item no.

    Product name

    Specification

    CCW-20XD

    20X Large N.A Objective

    20X Plan achromatic objective,Parfocal distance 95mm,W.D.20.68mm,focal Length 10mm,N.A 0.42 depth of focus 1.6μm,resolutions 0.7μm,FOVφ1.2mm(φ24Eyepiece),focal depth 3.3μm

    CCW-50XD

    50X Large N.A Objective

    50X Plan achromatic objective,Parfocal distance 95mm,W.D.13.48mm,focal Length 4mm,N.A 0.55 depth of focus 0.9μm,resolutions 0.5μm,FOVφ0.48mm(φ24Eyepiece),focal depth 1.4μm

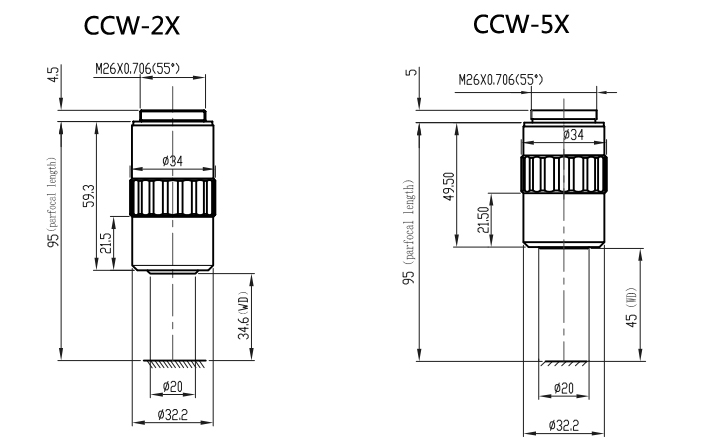

    Product Dimension Map:
