| Brand Name : | PDV |
| Model Number : | WD 3005 , WD 3010 , WD 3020 , WD 3050 , WD 3100 |
| Price : | Negotiable |
| Payment Terms : | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Delivery Time : | 1-2 weeks |

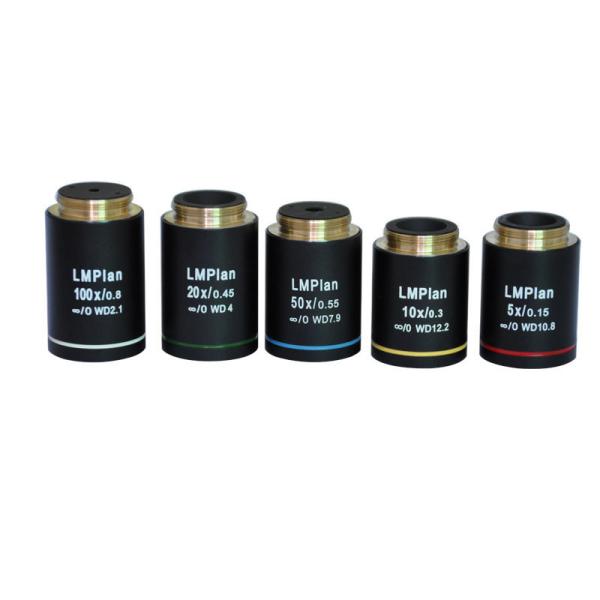

Optical Infinity flat field achromatic objective 5x 10x 20x 50x 100x WD-3005
The objective lens is a combination of lenses formed by one lens group. The purpose is to overcome the deficiencies of a single lens, to improve the optical quality of the lens. Its quality directly affect the quality of the microscope image. It is the decision of the microscope main components of the resolution and image clarity.
Product specification:
Item Number | Metallurgical Objective | Notes | 5x 10x 20x 50x 100x Long Working Distance Plan Achromatic Metallurgical Objective |
WD-3005 | 5X Infinity Plan Achromatic Objective | Objective Optical System | Infinite |
Objective Optical Magnification | 5X | ||
Objective Type | Plan Achromatic Objective | ||
Objective Parfocal Distance | 45mm | ||
Objectie Working Distance | 10.8mm | ||
Numerical Aperture(N.A) | N.A.0.15 | ||
Objective Cover Glass Thickness | /0 | ||
Objective Immersion Media | Dry Objective | ||
Objective Screw Thread | 4/5″×1/36″ | ||
Objective Outer Dia. | Φ26mm | ||
Surface Treatment | Electroplating Black | ||
Material | Metal | ||
Net Weight | 0.06kg(0.13ibs) | ||
Applied To: | MT0512 Series Microscope | ||
WD-3010 | 10X Infinity Plan Achromatic Objective | Objective Optical System | Infinite |
Objective Optical Magnification | 10X | ||
Objective Type | Plan Achromatic Objective | ||
Objective Parfocal Distance | 45mm | ||
Numerical Aperture(N.A) | N.A.0.30 | ||
Objective Cover Glass Thickness | /0 | ||
Objective Immersion Media | Dry Objective | ||
Objective Screw Thread | 4/5″×1/36″ | ||
Objective Outer Dia. | Φ26mm | ||
Surface Treatment | Electroplating Black | ||
Material | Metal | ||
Color | Black | ||
Net Weight | 0.08kg(0.18Ibs) | ||
Applied To: | MT0512 Series Microscope | ||
WD-3020 | 20X Infinity Plan Achromatic Objective | Objective Optical System | Infinite |
Objective Optical Magnification | 20X | ||
Objective Type | Plan Achromatic Objective | ||
Objective Parfocal Distance | 45mm | ||
Objectie Working Distance | 4mm | ||
Numerical Aperture(N.A) | N.A.0.45 | ||
Objective Cover Glass Thickness | /0 | ||
Objective Immersion Media | Dry Objective | ||
Objective Screw Threas | 4/5″×1/36″ | ||
Objective Outer Dia. | Φ26mm | ||
Surface Treatment | Electroplating Black | ||
Material | Metal | ||
Color | Black | ||
Applied To: | MT0512 Series Microscope | ||
WD-3050 | 50X Infinity Plan Achromatic Objective | Objective Optical System | Infinite |
Objective Optical Magnification | 50X | ||
Objective Type | Plan Achromatic Objective | ||
Objective Parfocal Distance | 45mm | ||
Objectie Working Distance | 7.9mm | ||
Numerical Aperture(N.A) | N.A.0.55 | ||
Objective Immersion Media | Dry Objective | ||
Objective Screw Threas | 4/5″×1/36″ | ||
Objective Outer Dia. | Φ26mm | ||
Surface Treatment | Electroplating Black | ||
Material | Metal | ||
Color | Black | ||
Applied To: | MT0512 Series Microscope | ||
WD-3100 | 100X Infinity Plan Achromatic Objective | Objective Optical System | Infinite |
Objective Optical Magnification | 100X | ||
Objective Type | Plan Achromatic Objective | ||
Objective Parfocal Distance | 45mm | ||
Objectie Working Distance | 2.1mm | ||
Numerical Aperture(N.A) | N.A.0.80 | ||
Objective Immersion Media | Dry Objective | ||
Objective Screw Threas | 4/5″×1/36″ | ||
Objective Outer Dia. | Φ26mm | ||
Surface Treatment | Electroplating Black | ||
Material | Metal | ||
Color | Black | ||
Net Weight | 0.10kg(0.22Ibs) | ||
Applied To: | MT0512 Series Microscope |
|
|
