    13mm Travel X Axis Miniature Linear Translation Stage Ball Bearing

    Fine Tuning X Axis Manual Linear Platform , Displacement Slide PP110-13-34


    Product Description

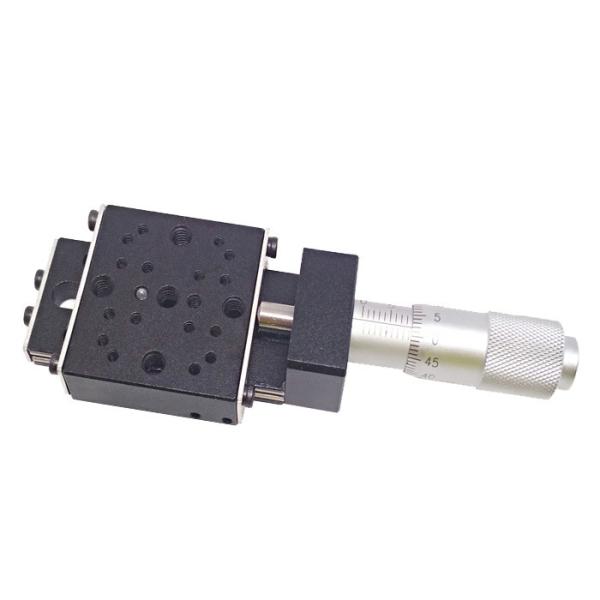

    PT110-13-34 precision manual translation platform, the main material is aluminum alloy, high sensitivity, small size, using cross roller guide rail, differential head drive, this series of products with less than 2um sensitivity. Mesa size diversity, thickness moderate, can be single - dimensional or multi-dimensional combination.


    Product Features


    Miniature Low-Profile Ball Bearing Linear Stages, 13mm Travel.


    The guide rail is a linear ball bearing fine ground steel bar with light load.


    The precision machined base and table make the straightness, deflection, pitch and movement parallelism of the table within a certain precision range.


    The displacement adjustment is driven by the micrometer head.


    The micrometer head is placed in the center of the translation table, which is easy to operate.


    Use spring return to eliminate axial clearance.


    It can be used alone or form a multi-dimensional combined table with other series of displacement tables.


    Product parameters:


    Item NumberPT110-13-34
    Travel Range13mm
    Actuator TypeMicrometer Head in Center
    Travel GuideBall Bearing
    Platform34mm × 34mm
    Parallelism30μm
    Straightness20μm
    Driving Parallelism30μm
    Minimum Scale10μm
    Positional Accuracy5μm
    Minimum Adjust Distance2μm
    Pitching80″
    Yawing60″
    Material – FinishAluminum Alloy - Black-Anodized
    Load capacity2Kgs
    Weight0.07kgs

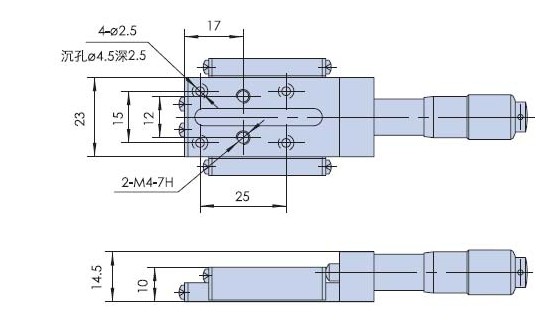

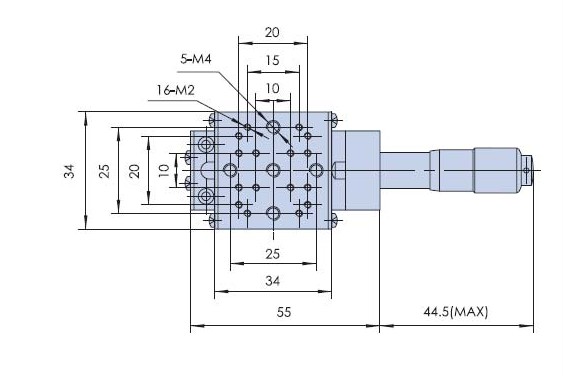

    Product Dimension Map


    Introduction to several main technical indexes of precision manual translation table:


    Resolution: refers to the minimum position increment that the mobile system can distinguish.


    Accuracy: the maximum difference between the actual position and the ideal position for a given input.


    Repeated positioning accuracy: refers to the ability of the translation system to reach an existing fixed point for many times.


    Load capacity: refers to the resultant force allowed to act on the center of the translation table and perpendicular to the moving direction and worktable.
