    Multipoupose Manual Linear Stage 34mm Platform Ball Bearings

    Ask Lasest Price
    Brand Name : PDV
    Model Number : PT110-13-34CL
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    Multipoupose Manual Linear Stage 34mm Platform Ball Bearings

    X Axis Manual Linear Sliding Translation Stages , 13mm Travel PT110 - 13 - 34CL


    The manual translation stage can provide customers with ordinary translation adjustment, and can also provide fine adjustment to micron level and nanometer level. It can be applied to optical fiber adjustment, optical engine adjustment system, biological engineering, microelectronics and other fields. Our company has an excellent design team, which can provide customization of this series of products according to customer needs.


    Product Features


    ■The main material is aluminum alloy, the surface is oxidized black treatment, high strength, good wear resistance, beautiful appearance.


    • The fine thread pair is placed in the center of the pan table for easy operation.


    • Use spring return to eliminate axial clearance.


    • Mounting holes with standard spacing on the table and base for easy installation and combination, and more firm.


    • Can be combined with other products into a multi-dimensional adjustment table.


    Product parameters:


    Item Number

    PT110-13-34CL

    Travel Range

    13mm

    Actuator Type

    Fine Adjustment Screws in Side

    Travel Guide

    Ball Bearings

    Platform

    34mm × 34mm

    Parallelism

    30μm

    Straightness

    20μm

    Driving Parallelism

    30μm

    Minimum Adjust Distance

    1μm

    Pitching

    80”
    Yawing60″

    Material – Finish

    Aluminum Alloy - Black-Anodized

    Load capacity

    2Kgs

    Weight

    0.07kgs

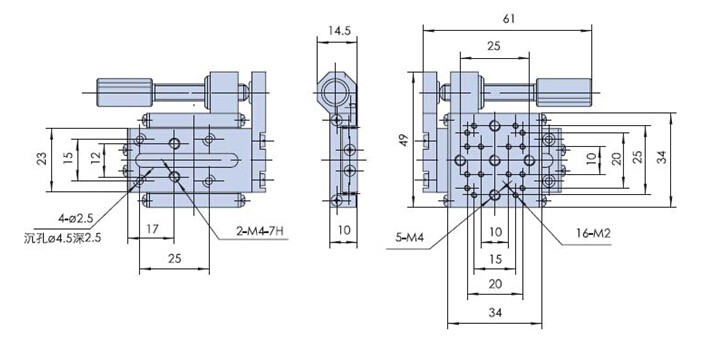

    Product Dimension Map
