Manual Optical Displacement Platform , XY Axis Linear Slide Stage PT-XY20-60LR/RL

Product description

XY axis manual linear stage, the main material of the product is hard aluminum alloy, the surface is oxidized black treatment, high precision, good wear resistance, beautiful appearance. The product is guided by linear ball guide and driven by fine thread pair, with high cost performance. Products of various sizes, can be single dimensional or multi-dimensional combination of use, suitable for most of the load capacity, motion accuracy has a certain requirement of the occasion.

Product features

Cross ball guide rail, high precision, large bearing capacity;

Differential head drive;

Divided right hand type, easy to operate;

Spring reset eliminates null loop.

Product specification

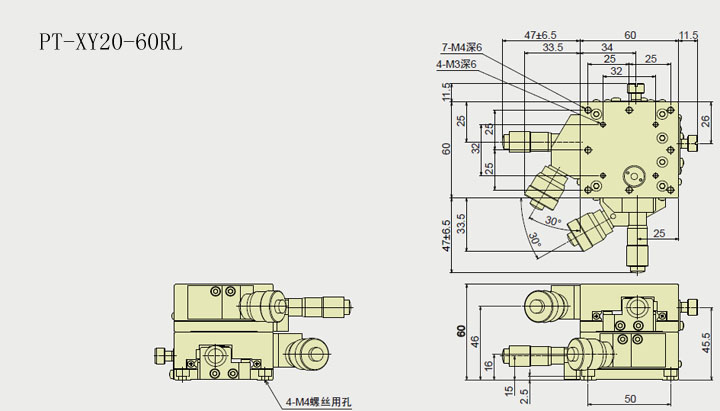

Product Dimension Map

Product advantages

1. Security: it has the security that withstands the test of time and is not subject to environmental changes.

2. Precision: to achieve the precision required by customers at a reasonable price, can fully meet the fine-tuning of high-precision scientific research institutions and mid-precision industrial demand.

3. Diversification: In order to meet the different needs of different customers, we adjust the length and size of the platform stroke and table, meet the adjustment of different directions and different angles, using modular design, can be customized.

4. Durability: our products have stainless steel, aluminum and other series of profile products, in the production process can withstand the use of long time and heavy load, longer service life, more convenient adjustment.

5. Operability: Our product design is based on the position of customers, according to the use of different customers to design different products, it is very convenient to use.

6. After-sales service: our delivery time is shorter, after-sales maintenance is faster, the company has excellent after-sales service personnel.

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
