    High Precision Ultra Thin Manual Rotary Stage Micro Rotation Stage Diameter 38mm

    Ask Lasest Price
    Brand Name : PDV
    Model Number : PR40-L , PR60-L , PR80-L , PR90-L , PRT100-L
    Price : Negotiable
    Payment Terms : D/A, D/P, T/T
    Delivery Time : 1-2 weeks
    • Product Details
    • Company Profile

    High Precision Ultra Thin Manual Rotary Stage Micro Rotation Stage Diameter 38mm

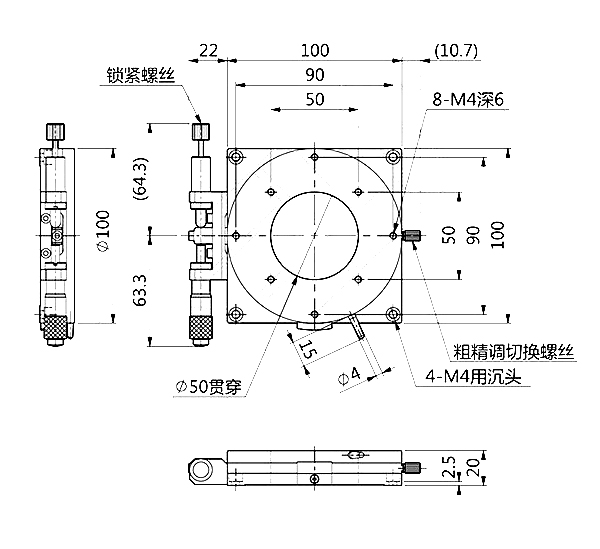

    Manual Rotary Stage / Rotary Table / Dividing Plate / 360 ° Turntable PR40- L / PR60- L / PR80- L / PRT100- L


    The manual rotary table is composed of high-precision collars, centimeters, etc., and has good motion characteristics during rotation. Key indicators such as end jump and radial jump can reach the international level of similar products. The product is suitable for fields with higher requirements for manual angle adjustment.


    Product features:


    Key indicators such as high-precision collar guidance and end jumping have reached the international level;


    Table size: φ38 , φ60 , φ80 , φ90 , φ100 optional;


    Micrometer head drive, high sensitivity, coarse adjustment range of 360°, fine adjustment range of ±5°;


    Load 0.1~0.5kg available;


    Ultra-thin structure, compact and exquisite;


    It can be used with other series of product groups.


    Applicable fields:


    microelectronics, optical communication, academies of sciences, fiber lasers and other fields.


    Product parameters:


    Specifications

    PR40-L

    PR60-L

    PR80-L

    PR90-L

    PRT100-L

    Plarform Size

    φ38

    φ60

    φ80

    φ90

    φ100

    Trip

    360 ° coarse adjustment, ± 5 ° fine adjustment

    load

    9.8N(1kgf)

    29.4N(3kgf)

    39.2(4kgf)

    39.2(4kgf)

    39.2(4kgf)

    Material

    Aluminium alloy

    Minimum scale

    10’

    10’

    5’

    5’

    5’

    Concentricity

    0.03mm

    0.03mm

    0.03mm

    0.03mm

    0.03mm

    Parallelism

    0.03mm

    0.03mm

    0.04mm

    0.04mm

    0.05mm

    Weight

    0.1kg

    0.16kg

    0.52kg

    0.62kg

    0.5kg
