125mm Travel Manual Linear Stage , Screw Displacement Table PT - SD110

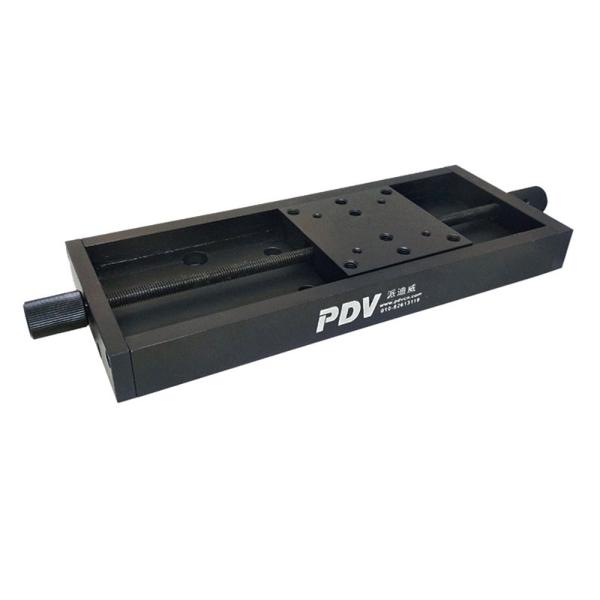

Precision manual translation stage: PT-SD110

Features:

■The guide rail is a dovetail pair, which has a large bearing capacity.

■Displacement adjustment is driven by finely ground screw.

■The fine-grinding screw is placed in the center of the translation table, which is easy to operate.

■The table and base are distributed with mounting holes with standard hole spacing, which is convenient for installation and combination.

■It can be composed of multi-dimensional adjustment frame or multi-dimensional adjustment with other series of products.

Product parameters:

Product Dimension Map

Manual slides can be equipped with plastic handwheels, folding handwheels and aluminum alloy handwheels according to the customer's industry; manual work slides can be equipped with angle rulers, position indicators, revolution counters or gravity indicators through handwheels; The manual work slide is driven by a hand wheel and a single-head, multi-head or left and right split trapezoidal screw. The slide table and base frame can be matched with an indicator ruler and indicator plate to detect the accuracy of the workpiece. The manual module adopts a rolling structure, with low friction and high positioning accuracy, which can be used for a long time.

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
