X-Axis 60 Displacement Platform Optical Alignment PlatformManual Linear Stage

Advantages:

High precision and smooth movement can be achieved by using cross roller guide.

The main material is aluminium alloy, light weight, suitable for other devices.

Product specification

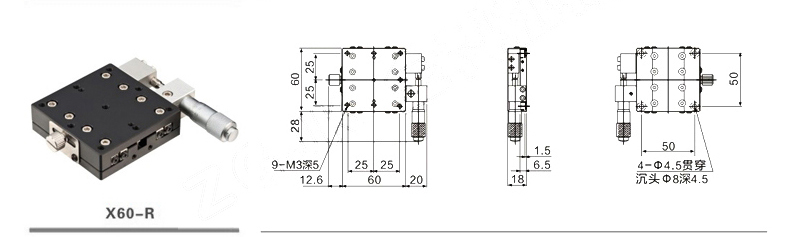

Product Dimension Map

X-Axis 60 Displacement Platform Optical Alignment Platform X-Axis Manual Linear Stage

Advantages of Cross-rail Type Slide Tables

The cross guide type slide table uses a unique method to increase the effective contact length of the rollers and shorten the roller pitch. After special heat treatment, it is combined with a precision-machined special track, which has the characteristics of high rigidity and high precision.

This type of track is widely used in optical workbenches, optical testers and other products including sliding table products.

1. The installation height of the cross guide rail is lower, and the stability of the operating machine is much higher than that of the linear guide rail;

2. The slide table of the cross guide has longer life and high rigidity. Because of its unique roller holding method, the displacement stage manufacturer has extended the effective contact length, and at the same time made the track have a long service life;

3. The slide table products with cross guide rails have better corrosion resistance. Cross guides are often made of stainless steel, which has excellent corrosion resistance.

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
