    Dovetail Miniature Manual Sliding Table X Axis Aluminum Alloy

    Dovetail Manual Displacement Station , X Axis Manual Linear Stage PT-DC25


    Precision manual translation stage PT-DC series products, the main material is aluminum alloy, high sensitivity, small size, using dovetail guide rails, driven by threaded pairs, this series of products has good sensitivity. The table top has various sizes and moderate thickness, and can be combined in single or multi-dimensional. This product can still maintain a strong load capacity, especially when it is used in the vertical direction or as the Z axis. ​


    Product features


    The main material is aluminum alloy with black anodizing treatment on the surface, which is suitable for optical experiments and other fields requiring high manual adjustment accuracy.


    The threaded screw driving mode is adopted, which has good wear resistance and ensures the sensitivity and other key indicators of the product.


    Dovetail auxiliary guide rail, large stroke and strong load capacity.


    With a scale, it is fast and convenient to read data.


    It has locking function, good locking effect and strong stability.


    Rich specification series and high cost performance.


    Product parameters:


    Model Number

    PT-DC25

    PT-DC40

    PT-DC60

    Actuator Type

    Screws p=0.5mm

    Operating Position

    Center

    Platform

    25×25mm

    40×40mm

    60×60mm

    Travel Range

    ±5mm

    ±7mm

    ±9mm

    Travel Guide

    Dovetail Lead Rail

    Load Capacity

    3kgf(29.4N)

    4kgf(39.2N)

    Straightness

    30μm

    Weight

    0.3kg

    0.5kg

    Surface Material

    Aluminum Alloy-Black-anodized

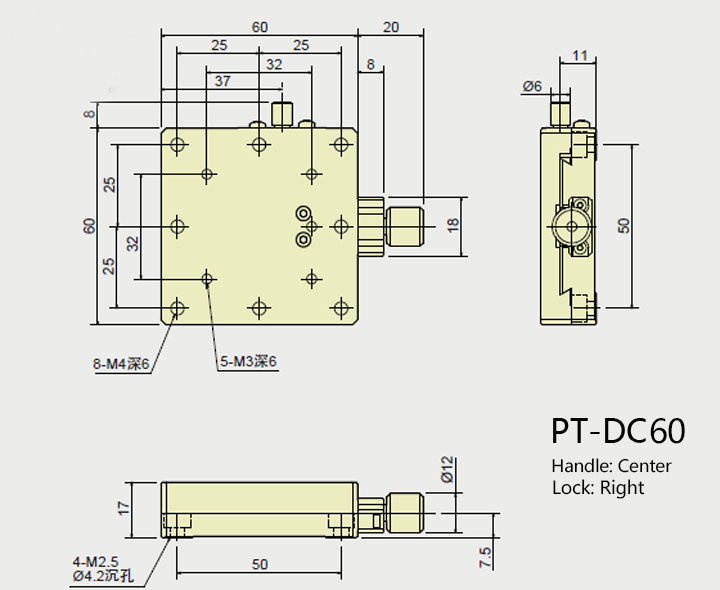

    Product Dimension Map



    X Axis Manual Linear Stage, Manual Displacement Station


    Introduction to several main technical indexes of precision manual translation table


    Resolution: refers to the minimum position increment that the mobile system can distinguish;


    Accuracy: the maximum difference between the actual position and the ideal position for a given input;


    Repeated positioning accuracy: refers to the ability of the translation system to reach an existing fixed point for many times;


    Load capacity: refers to the resultant force allowed to act on the center of the translation table and perpendicular to the moving direction and worktable.
