Optical Sliding Lift , Electric Lifting Platform , 30mm Travel Linear Slide Axis

Precision electric lifting table: PS20-300

Product characteristics

1. Standard stepper motor, with motion controller to achieve automatic control.

2. The lifting table adopts positive exchange direction mechanism and multi axis support for lifting. The worktable is placed horizontally, the driving force is in the center of the table, and the four surrounding guide rails are positioned, which solves the problem of eccentric load caused by the vertical use of the translation table, and the stability is natural and superior.

3. It is driven by precision grinding lead screw to realize arbitrary lifting and small air return.

4. The stepping motor and screw rod are connected through high-quality elastic coupling, with synchronous transmission and good depolarization performance, which greatly reduces eccentric disturbance and noise.

5. The electric lifting table is used horizontally, and can form a multi-dimensional electric adjustment table with other products.

6. The base has threaded holes and through holes with standard hole spacing, which is very convenient for installation. Zero and limit switches are installed at both ends to facilitate accurate positioning and protection of products.

Product specification

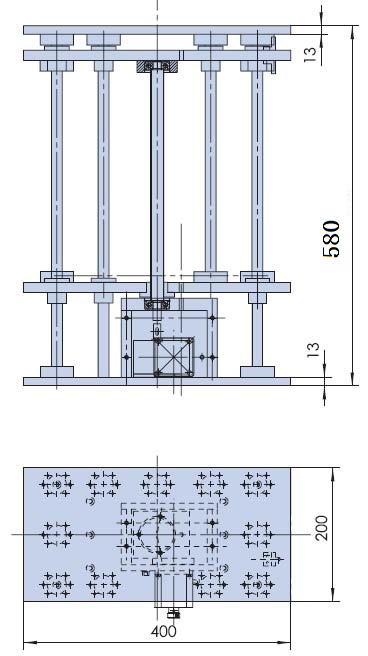

Product Dimension Map

Application area

Ultra precision laser processing, ultra precision three-dimensional scanning measurement, automatic measuring instruments and testing equipment, industrial automation and other fields.

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
