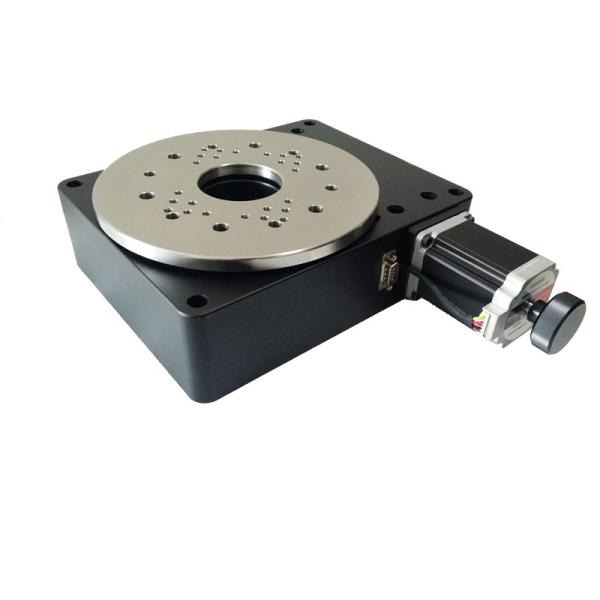

360 ° Rotation Electric Rotating Machine , Motorized Rotation Stage PT-GD204

PT-GD204 precision electric rotary table is a product with high precision and moderate price. It adopts fine grinding worm gear to ensure high rotation precision, and the key indexes such as end jump and diameter jump reach the advanced level of the same industry. The product has high load capacity and can be used for vertical use and multi-dimensional combination. The rotating shaft system is precision machined by multi-channel technology, with high matching accuracy, large bearing capacity and long service life.

Product features

1 Finish machining worm gear transmission, full circle angle, no limit adjustment;

2 Zero position photoelectric switch can be set;

3 Replaceable servo motor;

4 Replace the moving parts and motor, and the core parts can be applied to the vacuum environment after special treatment.

Product specification

Product diagram

Precision worm gear transmission and rotating shaft system design, high adjustment accuracy, small air return, and the air return clearance caused by use can be adjusted by the air return elimination structure. The end jump and eccentricity of the rotating table are low, and the rotating motion is stable. The central through hole of the rotary table is strictly coaxial with the rotary center, and the central aperture is strictly matched with the tolerance limit, which is convenient for precise positioning. The induction motor and worm are connected through high-quality elastic coupling, with synchronous transmission and depolarization performance number, so as to eliminate empty return and form and position errors.

It can provide electrical accessories for stepping and servo, provide relevant technical support, and accept product restructuring and customization.
