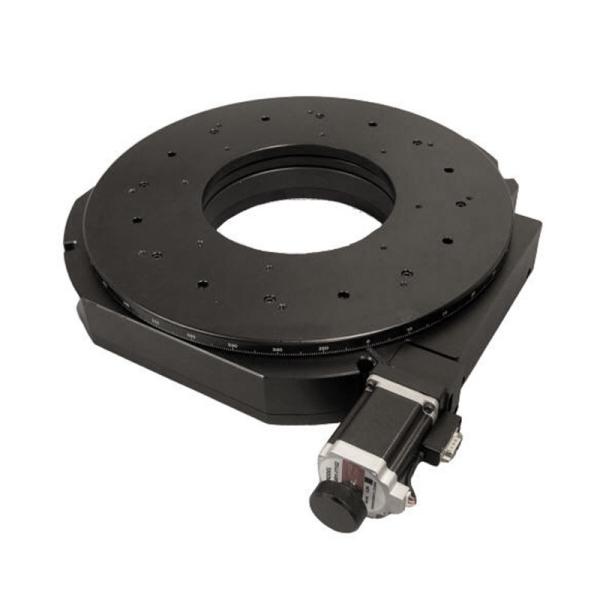

Motorized Rotation Stage Electric Optical Rotating Platform Precision Rotary Desk

Product specification

Product features

The stepping motor is equipped as standard, and the motion controller can realize automatic control.

The main material is hard aluminum alloy, which has better corrosion resistance. Hard oxidized surface treatment makes the platform less prone to scratches.

The rotating shaft system is made of bearing steel, with high matching accuracy, large bearing capacity and long service life.

The transmission adopts worm gear structure, and the table can rotate forward and backward at will.

The worm gear and worm are precisely matched, with comfortable movement and minimal air return.

The cleverly designed clearance elimination structure can adjust the clearance caused by long-term use.

The diameter of the central through hole is limited by tolerance, and the center of the through hole coincides with the rotation center to facilitate positioning.

Stepper motor and worm are connected by imported high-quality elastic coupling, with synchronous transmission and low noise.

The outer ring of the table top is a scale ring, which is laser engraved and can rotate relative to the table top, which is convenient for reading and initial positioning

Replaceable servo motor.

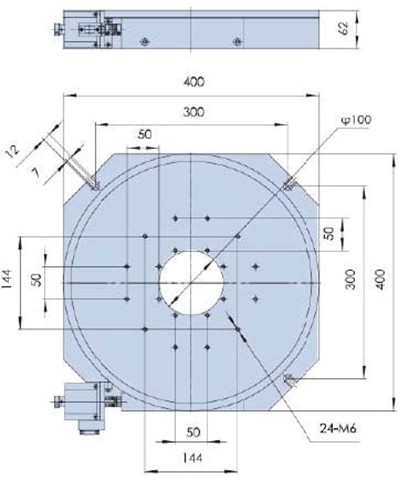

Product diagram



The electric rotary table is mainly used to solve the problems that it is impossible to detect whether the equipment is perpendicular to the ground, to detect the components, and to easily control the rotary device.

Product scope of application

angle measurement and detection, fine adjustment and precise positioning, spraying equipment, laser processing, optical device detection, semiconductor equipment, detection instruments, medical equipment, electrical component detection and assembly, tool precision grinding and many other fields.

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
