Differential Head Vertical Drive Precision Manual Height Adjustment Table PT-SD13M/SD25M

The manual lift table PT-SD13M and PT-SD25M are high-precision manual translation stages introduced by PDV. The main material of this series of products is made of high-strength aluminum alloy, the surface is treated with black oxidation, and the displacement structure of cross roller guide rail is adopted. In OA equipment and peripheral equipment, various testers, printed circuit board drilling machines and other precision machines.

Product features:

1. Using cross roller guide rail, can achieve high precision, smooth movement.

2. The main material is aluminum alloy, light weight, suitable for embedded in other devices.

3. The driving position is vertical, the driving mode is differential head, the reading is more accurate and convenient.

4. Table size 43×47mm,65×66mm, two specifications are optional.

5. Table load 2KGF, 4KGF, two specifications to choose from.

6. Locking screw locking firmly, safe and reliable. Table has standard connection hole for easy fixed connection.

Product parameters:

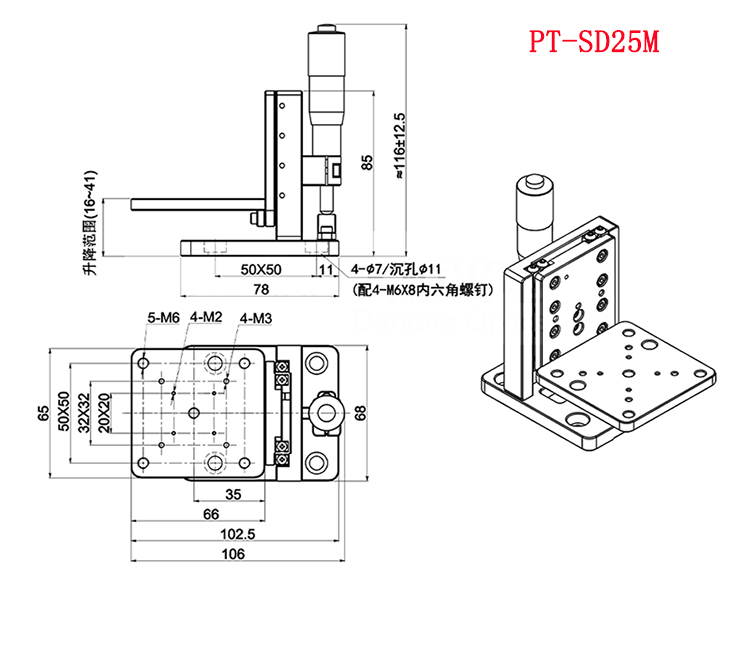

Product Dimension Map:
