Precision Manual Lifting Table , Lift Slide Table , Manual Lab Jack PT - SD410

Precision manual lifting table: PT-SD410

Manual lifting platform PT-SD410, the main material of the product is made of high strength hard aluminum, the surface is blackened by anodic oxidation. It adopts scissive lifting structure, driven by precision grinding screw, with self-locking function, stable structure, convenient adjustment, suitable for manual adjustment occasions with large stroke and coarse positioning.

Product features:

※ It is used for lifting adjustment of large stroke, non quantitative and large load.

※ The shear lifting mechanism is adopted, the double rotary lead screw drive is finely polished, and the double guide rail shaft passes through the positioning mechanism to ensure stable and comfortable movement, high precision and large bearing capacity.

※ The table is wide and the table is designed with multiple holes, which has strong applicability and can be used as the mounting surface.

※ Equipped with locking handwheel, safe and reliable.

※ The base and table have connecting holes with standard hole spacing, which is convenient for combination with other series products.

Product Specifications:

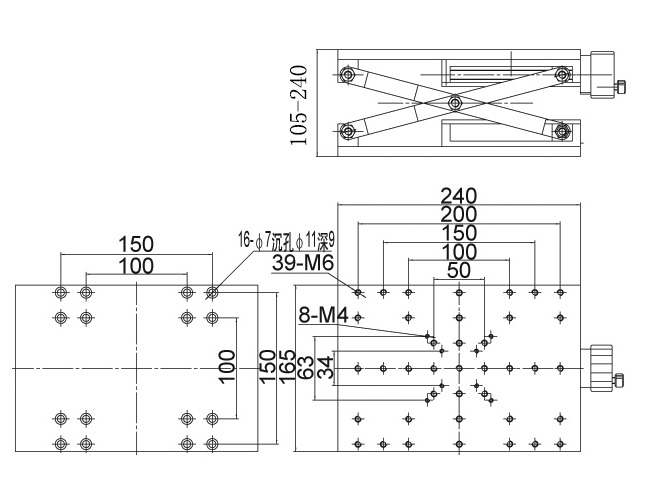

Product Dimension Map:
