Digital Display Differential Head Large Lead Long Stroke Manual Two-Axis Slide Stage
This manual two-dimensional combination stage is composed of a manual linear stage PT60 and a digital display stage PT-SX25.
The linear mobile platform is a manual displacement platform that enables the table top to make precise displacement by manually adjusting the separation clamp head. PDV has a variety of linear mobile platforms with high repeatability, high accuracy, high repeatability, high linearity and high load for you to choose from, including standard spot products such as single axis precision displacement table, high-precision cross roller bearing displacement table and three-axis precision displacement table.
PDV can provide you with supporting optical and mechanical components. At the same time, we have a large number of standard libraries available from stock. At the same time, we can also customize a manual mobile platform to meet your needs according to your needs. PDV sincerely hopes to provide you with simple, economic and fast means in the process of building the optical experiment system, and facilitate you to quickly fix, replace and adjust components in the process of use.
PT60-145 / PT60-205 Product Parameter
| Subject | Guide | Knob | Feed screw | |
| Material | Surface Treatment | Material | Material | |
| Al6063 | Black anodizing | linear guide rail | Al6063 | 0Cr18Ni9 (304)stainless steel |
| Model | Slide surface (mm) | Maximum stroke (mm) | Z(mm) | A(mm) | B(mm) | Load resistance level (N) | weight(Kg) |
| PT60-145 | 60*60 | 145 | 72.5 | 225 | 160 | 98 | 1.2 |
| PT60-205 | 60*60 | 205 | 102.5 | 285 | 220 | 98 | 1.4 |
PT-SX25 Manual digital display stage
| Model | PT-SX25 |
| Table size(mm) | 100×100 |
| Trip(mm) | 25 |
| Adjusting pitch(mm) | 0.5 |
| resolving power(mm) | 0.001 |
| Minimum reading(mm) | 0.001 |
| Reading accuracy(um) | ±3 |
| Motion straightness(um)(Swing left and right during movement) | ±1 |
| Motion parallelism(um)(Ups and downs during movement) | ±3 |
| Table flatness(um) | ±10 |
| load bearing(kg) | 15 |
| Sliding guide rail | Cross roller guide |
| Dead weight(kg) | 1.05 |

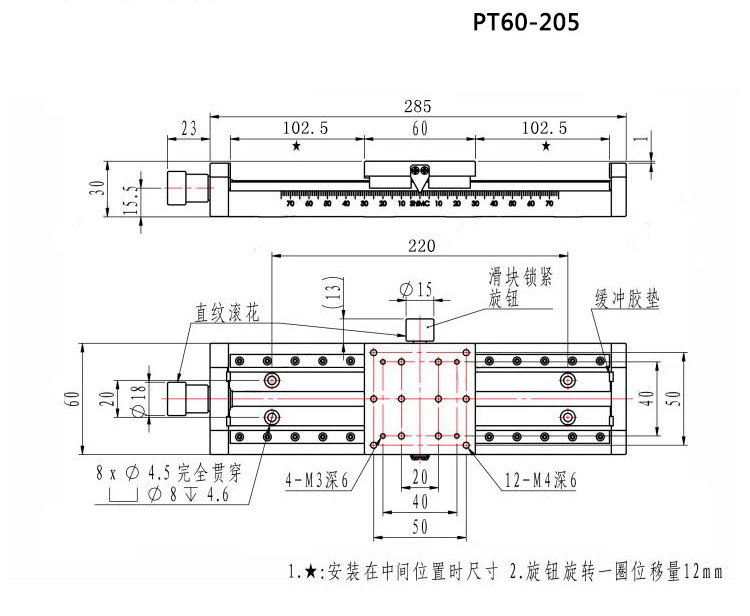

Product dimension drawing:
|
|
