Light Load Low-Speed High-Resolution Electric Linear Platform

Precision Electric Linear Platform: PP110-50

PP110-50 motorized linear platform has a high degree of serialization, good stability, strong versatility, and convenient combination. It is suitable for various scientific research and industrial users' precision optical experiments, precision positioning, precision machining and other fields. The products can still maintain a high stability and consistency in complex industrial environments, and are extremely cost-effective electric translation platform products.

Features of precision electric linear Platform:

1. Precision ball screw drive, with high transmission efficiency, small starting torque, and high positioning and repeated positioning accuracy;

2. The self aligning ball linear guide rail is used for support and guidance, and the light preloading assembly process is used to effectively eliminate the gap and improve the rigidity. The load capacity is strong, and the running straightness and parallelism are good;

3. It is driven by standard two-phase stepping motor, with large torque and high stability;

4. The standard motor is equipped with a hand wheel to realize the integration of manual self adjustment;

5. Standard DB9 interface, with strong universality, can also be compatible with our two-phase stepping motor controller;

6. The standard installation hole position is used to facilitate the installation of instruments and equipment and the combination of multi degree of freedom modules.

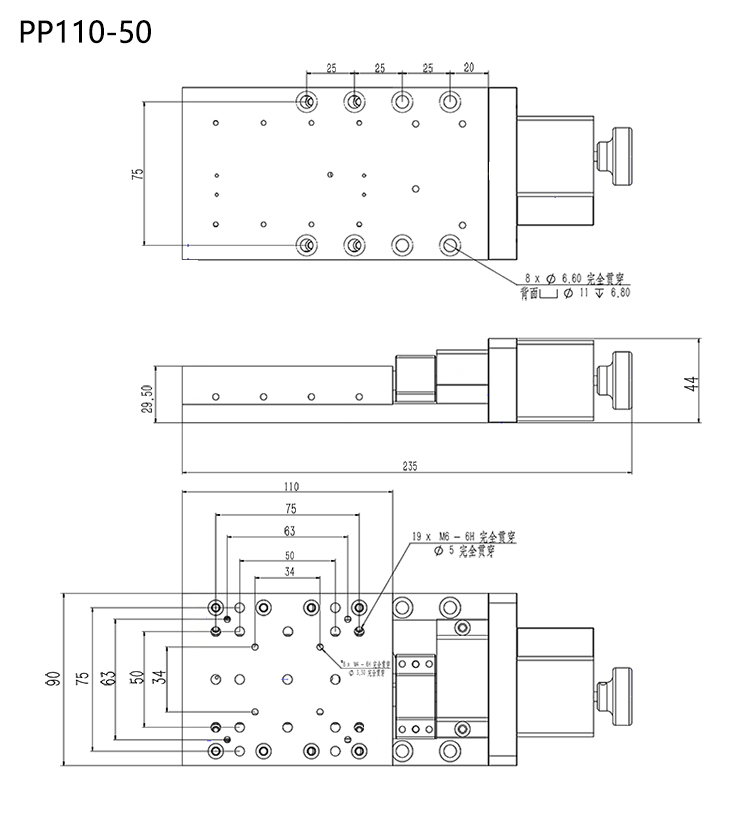

Dimension drawing of electric linear platform:



In the future, PDV aims to "make science and technology work more efficient!" To create more valuable optical and mechanical tool products. We adhere to the values of innovation, diligence, responsibility and seriousness.

PDV main products: electric displacement table, manual displacement table, optical adjustment frame, optical platform, optical components and other products. We insist on quality assurance from design, part selection, manufacturing, assembly, inspection, packaging, transportation to after-sales service.

Beijing PDV Instrument Co., Ltd is a collection of optics, precision machinery, automatic control technology independent high-tech research and development enterprises. Since 2005, we have been serving the scientific research institutes and universities. We have developed the hardware and software system (optical path construction, software development, mechanical circuit design, etc.) according to the needs of customers. Through long-term unremitting efforts, the process of building the system to control the optical path and excellent service to customers, we’ve grown into a well-known manufacturer among scientific research, colleges and universities, machinery automation and many other areas.

The company designs and produces telephoto lens, automatic mechanical console, manual console, ultra brightness light source and other products. The products focus on modularization and integration, and have formed mass production. They have complete specifications and good quality. At the same time, they provide customized services. With excellent quality, the products are widely used in electronic and precision industrial testing, laboratory and measuring instrument industries, scientific research institutions, and exported to overseas markets such as Japan, South Korea, Europe and the United States.

The company has strong technical force and has a group of professional teams engaged in R & D, production and sales of optoelectronic products for a long time. It has extensive professional experience in displacement precision adjustment, motion control, precision image measurement and so on.

We hope to become your reliable partner with perfect products and reasonable price, and win your support.
