Height Rotary Adjustable Manual Lab Jack Experimental Displacement Stage Load 50kg PT-SD208

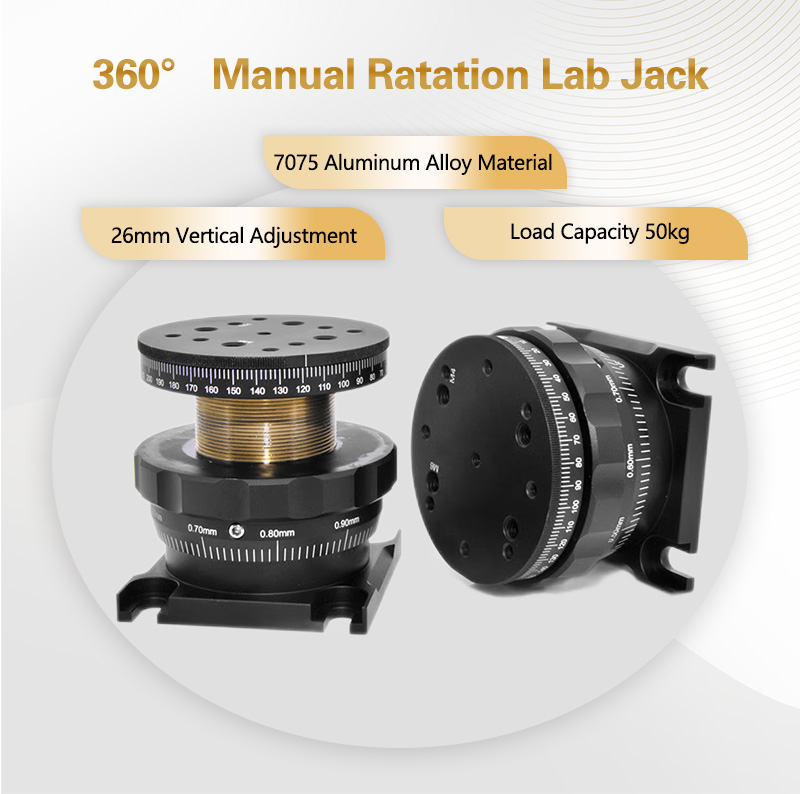

The height rotary adjustable manual lab jack is a compact installation platform, with a lockable movement range, and the optical elements can be firmly and stably installed at any height without swinging. The rotary platform is provided with knurled wheels for rough adjustment, and the scale interval of knurled wheels is 2 °. The platform can be rotated 360 ° to roughly adjust and lock the position. The sector adjusting ring can provide 26mm non rotating vertical travel with a scale of 0.01mm. And lock the position with the set screw on the side.

Features of manual rotary lifting stage:

1, high stability, locking vertical and rotating movement lifting platform;

2. The top platform can be rotated 360° for rough adjustment and locked position;

3, vertical adjustment range of 26mm, from 50.8mm to 76.8mm;

4, installation surface Φ67.0mm;

5. Static and dynamic load capacity of 50kg (110.2lbs);

6, a variety of thread array working table is optional, to adapt to different experimental requirements.

manual rotary lifting stage product specification:

This height rotary adjustable manual lab jack can provide 26mm vertical adjustment with a scale of 0.01mm. The rotary platform is provided with knurled wheels for rough adjustment, and the scale interval of knurled wheels is 2 °. The platform can be rotated 360 ° to roughly adjust and lock the position.

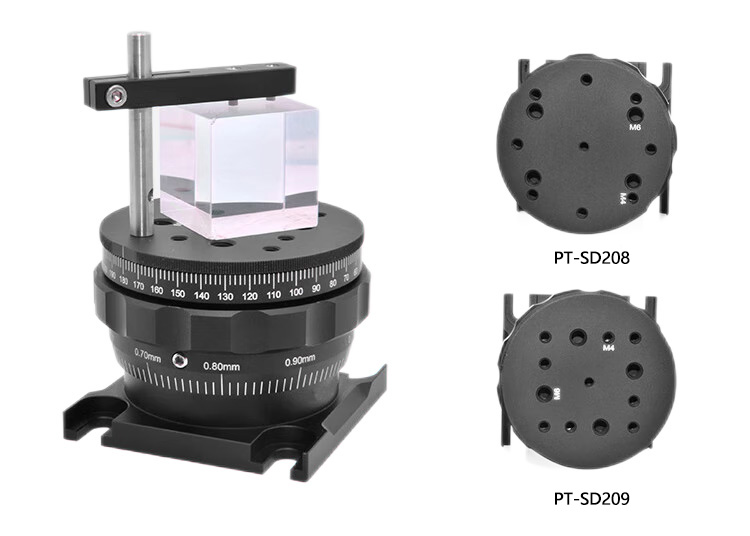

M4 and M6 mounting holes are provided on the top platform for connecting other components. It is used together with the pressure arm to provide the pressure holding force for the adjustment frame/mounting base of the platform, and can easily and safely fix the prism and cube beam splitter through the screw hole screwed into the top of the platform.

Product application scope:

The products are widely used in industrial automation testing, intelligent robots, intelligent transportation, automotive electronics, aerospace, optical communications, laser technology, medical equipment and other fields.
