    Fine Adjustment 3kg Manual Rotary Stage Tilt Two Xy Axis Pitch Deflection Platform

    Manual Fine Adjustment Two Axis Tilt Rotary Stage XY Axis Pitch Deflection Platform


    Product description:

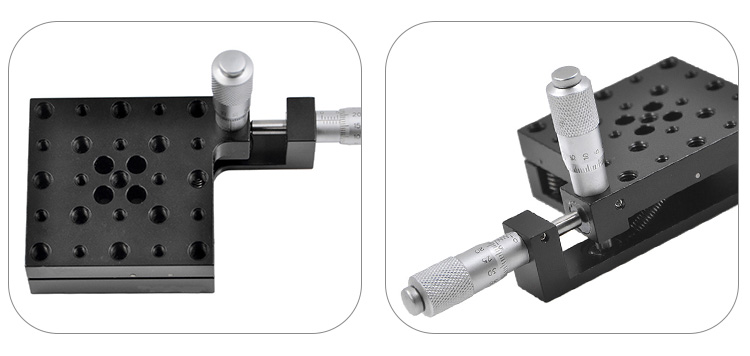

    PT-QX10 two-dimensional tilting rotary table is made of 7075 aluminum alloy. The angle can be adjusted in a small range (x axis: 2.5 ° earth small angle rotation adjustment; y axis: 5 ° earth tilt and pitch adjustment). The differential head is used for operation, which is easy to use. The bottom of the product has a mounting screw hole, which can be directly connected to other worktops; The upper and lower parts are equipped with connection holes with standard hole pitch, which is convenient for combination with other series of products.



    Product characteristics:


    1. PT-QX10 has ± 2.5 ° small angle rotation function and ± 5 ° tilt and pitch adjustment;


    2. The 6mm-4mm threaded holes on the working face are regularly distributed;


    3. Different specifications of laser light sources and optical elements can be integrated and installed;


    4. The material adopts industrial grade # 7075 aluminum alloy oxidation and blackening treatment;


    5. The differential adjusting shaft can precisely adjust the degree;


    6. The use of spring return increases flexibility.


    Product specification:


    Model NumberPT-QX10
    Displacement AxisXY-axis
    Drive ModeMicrometer Head
    Thread TypeM6,M4
    Load Capacity3kg
    Platform Size60mm*60mm
    Height24.5mm
    Tilt Angle±5°(x-axis)
    Rotation Angle±2°(y-axis)
    Material7075 Aluminium Alloy
    Weight210g

    The angle can be adjusted in a small range (x axis: 2.5 ° earth small angle rotation adjustment; y axis: 5 ° earth tilt and pitch adjustment). The differential head is used for operation, which is easy to use.

    The bottom of the product has a mounting screw hole, which can be directly connected to other worktops; The upper and lower parts are equipped with connection holes with standard hole pitch, which is convenient for combination with other series of products.
